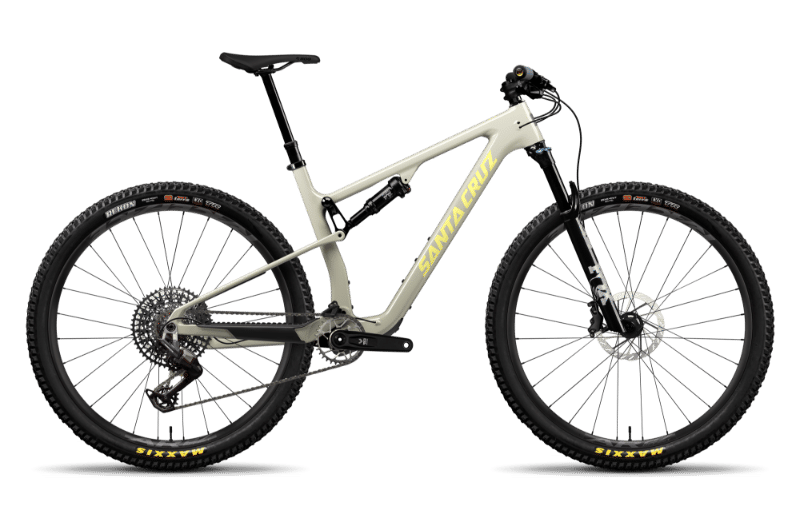

2026 Santa Cruz Blur geometry
Full frame geometry for the 2026 Santa Cruz Blur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 412 | 75.1 | 67.1 | 90 | 568 | 744 | 33 | 695 | 431 | 1126 | 44 |
| M | 597 | 438 | 75 | 67.1 | 100 | 597 | 746 | 33 | 724 | 433 | 1157 | 44 |
| L | 607 | 458 | 74.9 | 67.1 | 110 | 621 | 745 | 33 | 747 | 436 | 1183 | 44 |
| XL | 621 | 483 | 74.8 | 67.1 | 125 | 652 | 750 | 33 | 778 | 438 | 1216 | 44 |
All measurements in millimetres unless marked (°) for angles.
