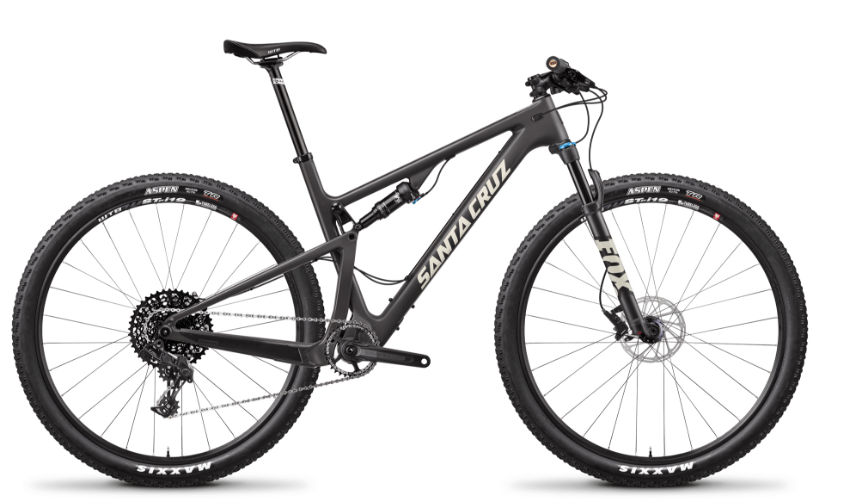

2018 Santa Cruz Blur geometry
Full frame geometry for the 2018 Santa Cruz Blur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 420 | 74 | 69 | 90 | 575 | 405 | 722 | 42 | 681 | 432 | 1113 |
| M | 588 | 440 | 74 | 69 | 110 | 597 | 430 | 722 | 42 | 704 | 432 | 1136 |
| L | 598 | 460 | 74 | 69 | 110 | 621 | 470 | 723 | 42 | 728 | 432 | 1160 |
| XL | 612 | 490 | 74 | 69 | 125 | 656 | 520 | 730 | 42 | 763 | 432 | 1195 |
All measurements in millimetres unless marked (°) for angles.
