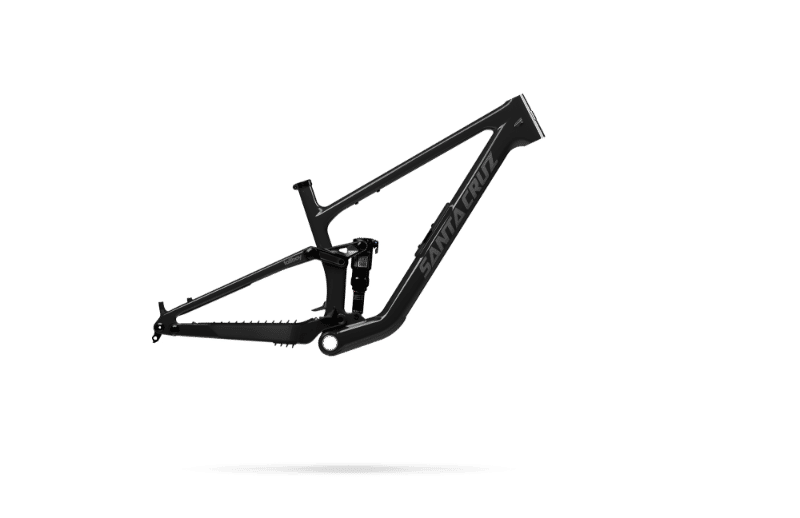

2027 Santa Cruz Tallboy geometry
Full frame geometry for the 2027 Santa Cruz Tallboy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 410 | 77.6 | 65.1 | 90 | 542 | 360 | 699 | 36 | 435 | 1156 | 44 |
| S | 610 | 435 | 77.6 | 65.1 | 100 | 569 | 380 | 703 | 36 | 435 | 1185 | 44 |
| M | 624 | 455 | 77.3 | 65.1 | 115 | 596 | 400 | 718 | 36 | 435 | 1212 | 44 |
| L | 633 | 475 | 77.4 | 65.1 | 125 | 616 | 420 | 728 | 36 | 438 | 1239 | 44 |
| XL | 646 | 495 | 77.5 | 65.1 | 140 | 637 | 450 | 742 | 36 | 440 | 1267 | 44 |
| XXL | 660 | 520 | 77.5 | 65.1 | 155 | 666 | 500 | 758 | 36 | 444 | 1302 | 44 |
All measurements in millimetres unless marked (°) for angles.
