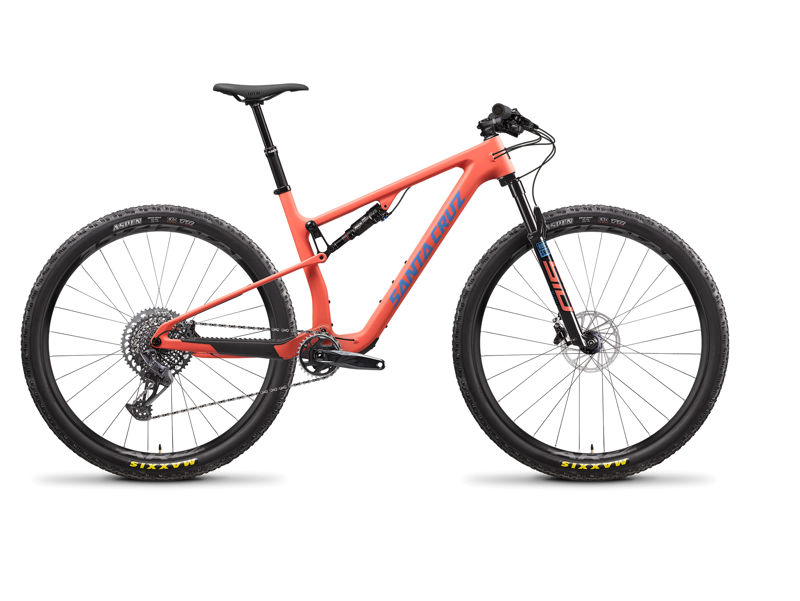

2023 Santa Cruz Blur geometry
Full frame geometry for the 2023 Santa Cruz Blur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 578.3 | 425 | 76.5 | 68.3 | 90 | 563.9 | 736.6 | 42 | 685.8 | 1115.8 |
| M | 587.6 | 450 | 76.3 | 68.3 | 100 | 592.8 | 740.1 | 42 | 714.5 | 1147 |
| L | 596.9 | 470 | 75.8 | 68.3 | 110 | 616.9 | 739.2 | 42 | 738.2 | 1173.2 |
| XL | 610.8 | 495 | 75.7 | 68.3 | 125 | 647.2 | 745.1 | 42 | 768.7 | 1206.2 |
All measurements in millimetres unless marked (°) for angles.
