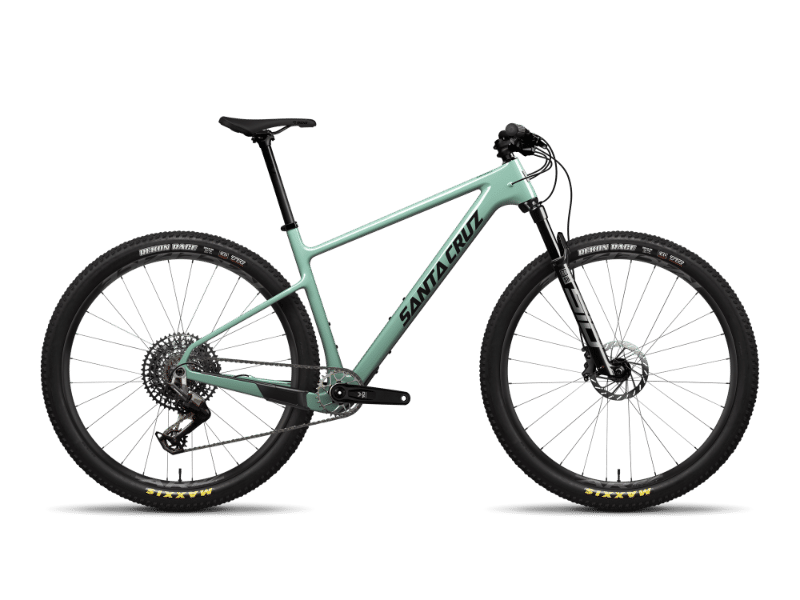

2026 Santa Cruz Highball geometry
Full frame geometry for the 2026 Santa Cruz Highball, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 415 | 73.5 | 67 | 95 | 595 | 405 | 707 | 60 | 693 | 426 | 1119 |
| M | 605 | 440 | 73.5 | 67 | 105 | 619 | 430 | 704 | 60 | 719 | 426 | 1145 |
| L | 614 | 460 | 73.5 | 67 | 115 | 642 | 470 | 739 | 60 | 743 | 426 | 1169 |
| XL | 633 | 490 | 73.5 | 67 | 135 | 677 | 530 | 755 | 60 | 781 | 426 | 1207 |
All measurements in millimetres unless marked (°) for angles.
