2027 Santa Cruz · DH

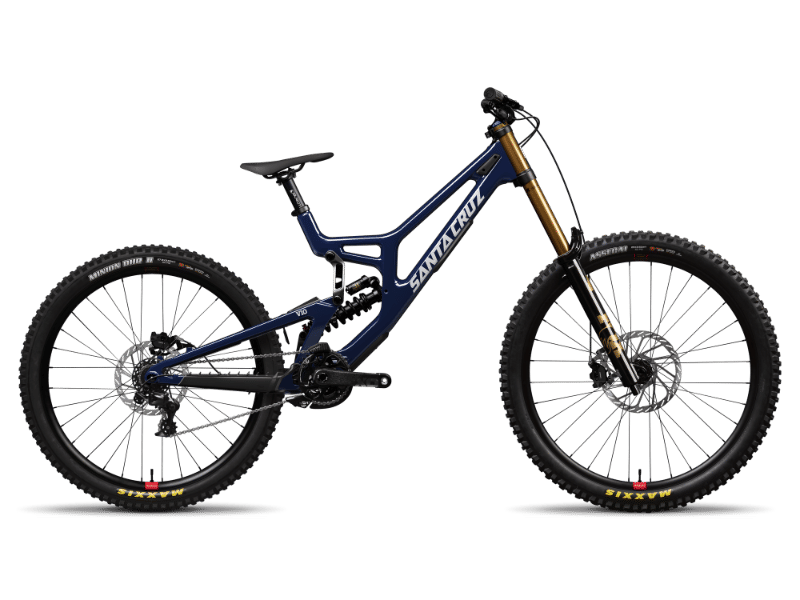

2027 Santa Cruz V10 geometry
Full frame geometry for the 2027 Santa Cruz V10, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 419 | 77.8 | 62.9 | 100 | 435 | 726 | 19 | 785 | 445 | 1231 | 52 |
| M | 634 | 454 | 77.3 | 62.9 | 110 | 445 | 728 | 19 | 825 | 451 | 1275 | 52 |
| L | 638 | 474 | 77.2 | 62.9 | 115 | 455 | 729 | 19 | 847 | 456 | 1303 | 52 |
| XL | 643 | 499 | 76.9 | 62.9 | 120 | 465 | 729 | 19 | 874 | 461 | 1335 | 52 |
All measurements in millimetres unless marked (°) for angles.
