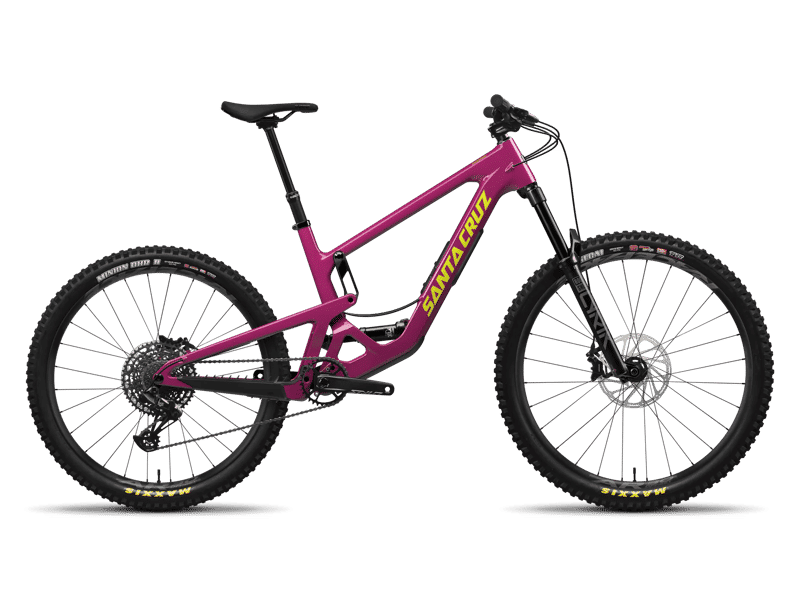

2026 Santa Cruz Bronson geometry
Full frame geometry for the 2026 Santa Cruz Bronson, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 435 | 77.6 | 64.2 | 110 | 572 | 721 | 29 | 771 | 437 | 1208 |
| S Lo | 625 | 432 | 77.3 | 63.9 | 110 | 572 | 721 | 32 | 771 | 437 | 1208 |
| M | 632 | 460 | 77.9 | 64.2 | 120 | 595 | 723 | 29 | 800 | 439 | 1240 |
| M Lo | 634 | 457 | 77.6 | 63.9 | 120 | 595 | 723 | 32 | 800 | 439 | 1240 |
| L | 641 | 480 | 78.2 | 64.2 | 130 | 614 | 725 | 29 | 825 | 442 | 1267 |
| L Lo | 643 | 478 | 77.9 | 63.9 | 130 | 614 | 725 | 32 | 825 | 442 | 1267 |
| XL | 659 | 500 | 78.3 | 64.2 | 150 | 636 | 727 | 29 | 853 | 445 | 1299 |
| XL Lo | 661 | 498 | 78 | 63.9 | 150 | 636 | 727 | 32 | 853 | 445 | 1299 |
| XXL | 668 | 525 | 78.4 | 64.2 | 160 | 662 | 731 | 29 | 883 | 448 | 1331 |
| XXL Lo | 670 | 523 | 78.1 | 63.9 | 160 | 662 | 731 | 32 | 883 | 448 | 1331 |
All measurements in millimetres unless marked (°) for angles.
