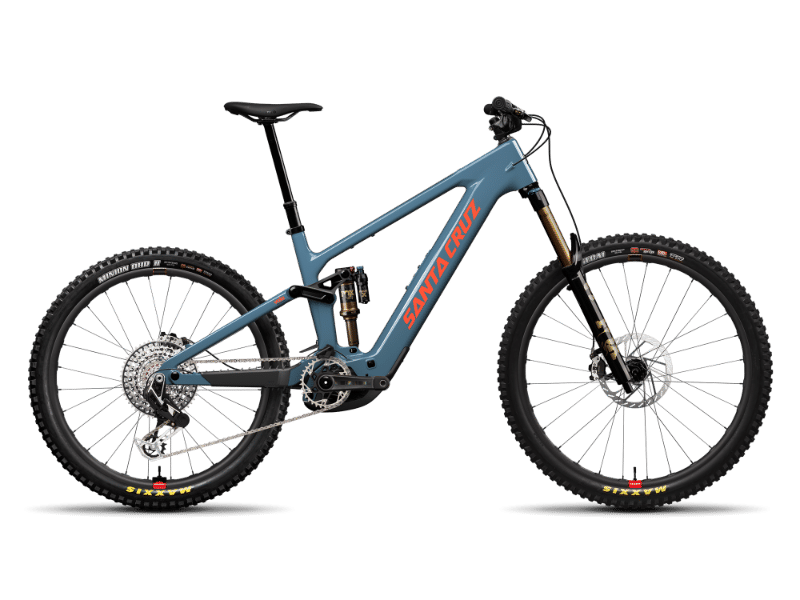

2027 Santa Cruz Vala geometry
Full frame geometry for the 2027 Santa Cruz Vala, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 435 | 77.5 | 64.2 | 110 | 573 | 380 | 741 | 11 | 771 | 439 | 1210 | 44 |
| M | 632 | 460 | 77.5 | 64.2 | 120 | 601 | 400 | 735 | 11 | 800 | 440 | 1240 | 44 |
| L | 641 | 480 | 77.5 | 64.2 | 130 | 622 | 420 | 734 | 11 | 825 | 443 | 1268 | 44 |
| XL | 655 | 500 | 77.5 | 64.2 | 145 | 645 | 460 | 734 | 11 | 851 | 446 | 1297 | 44 |
| XXL | 668 | 525 | 77.5 | 64.2 | 160 | 673 | 500 | 728 | 11 | 883 | 450 | 1333 | 44 |
All measurements in millimetres unless marked (°) for angles.
