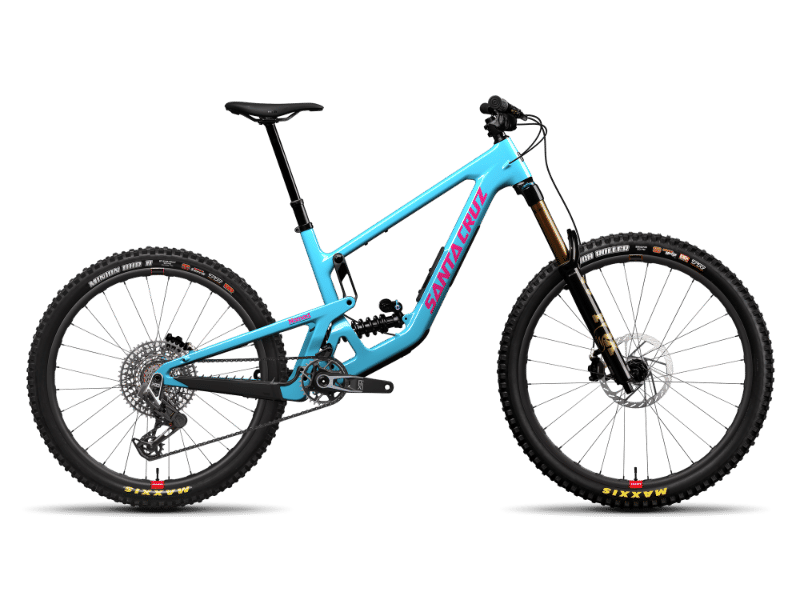

2027 Santa Cruz Nomad geometry
Full frame geometry for the 2027 Santa Cruz Nomad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 624 | 435 | 78 | 63.6 | 100 | 569 | 380 | 711 | 26.5 | 781 | 438 | 1219 | 44 |
| S-Low | 626 | 433 | 77.7 | 63.3 | 100 | 569 | 380 | 707 | 30 | 780 | 439 | 1219 | 44 |
| M-High | 633 | 455 | 78.2 | 63.6 | 110 | 587 | 400 | 719 | 26.5 | 805 | 441 | 1246 | 44 |
| M-Low | 635 | 453 | 78.1 | 63.3 | 110 | 586 | 400 | 715 | 30 | 805 | 442 | 1247 | 44 |
| L-High | 643 | 475 | 78.6 | 63.6 | 120 | 604 | 420 | 722 | 26.5 | 830 | 444 | 1276 | 44 |
| L-Low | 645 | 473 | 78.4 | 63.3 | 120 | 605 | 420 | 718 | 30 | 830 | 445 | 1274 | 44 |
| XL-High | 660 | 495 | 78.7 | 63.6 | 140 | 627 | 450 | 726 | 26.5 | 858 | 447 | 1305 | 44 |
| XL-Low | 662 | 493 | 78.5 | 63.3 | 140 | 628 | 450 | 722 | 30 | 858 | 448 | 1306 | 44 |
| XXL-High | 669 | 520 | 78.9 | 63.6 | 150 | 651 | 500 | 732 | 26.5 | 888 | 451 | 1339 | 44 |
| XXL-Low | 671 | 518 | 78.7 | 63.3 | 150 | 652 | 500 | 728 | 30 | 888 | 452 | 1339 | 44 |
All measurements in millimetres unless marked (°) for angles.
