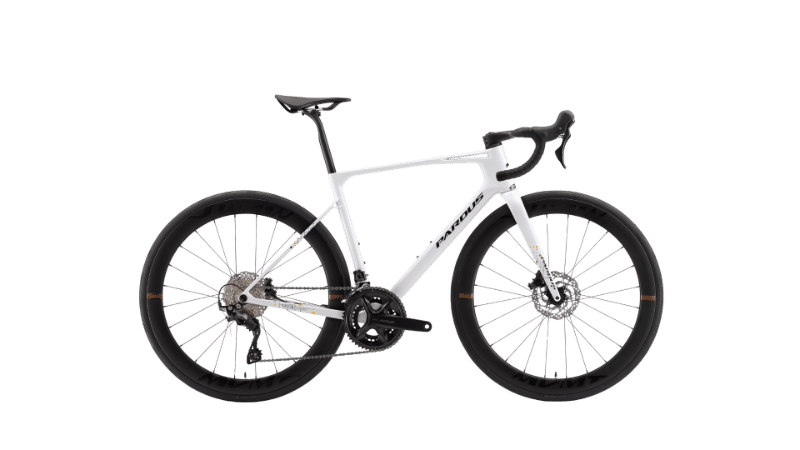

2026 Pardus Robin Sport geometry
Full frame geometry for the 2026 Pardus Robin Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 511 | 358 | 71 | 75 | 112 | 495 | 440 | 731 | 72 | 571 | 420 | 974 | 54 | 62.5 |
| XS | 522 | 366 | 71.5 | 74.5 | 122 | 511 | 454 | 744 | 72 | 578 | 420 | 981 | 54 | 59 |
| S | 535 | 375 | 72.5 | 74 | 132 | 528 | 469 | 761 | 70 | 576 | 420 | 986 | 48 | 59 |
| M | 550 | 385 | 72.5 | 74 | 147 | 543 | 485 | 777 | 70 | 591 | 420 | 1000 | 48 | 59 |
| L | 570 | 397 | 73 | 73.5 | 167 | 566 | 505 | 798 | 70 | 604 | 420 | 1014 | 48 | 56 |
| XL | 595 | 410 | 73 | 73 | 193 | 592 | 535 | 824 | 70 | 625 | 420 | 1035 | 48 | 56 |
All measurements in millimetres unless marked (°) for angles.
