2026 Pardus · RD

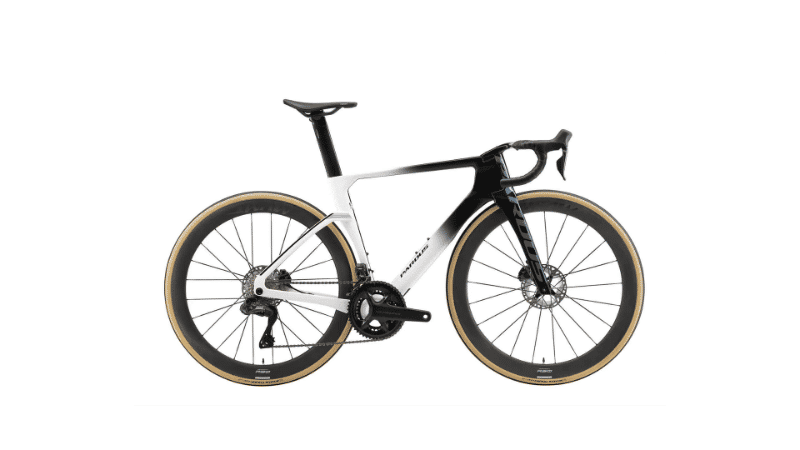

2026 Pardus SPKG4 EVO geometry
Full frame geometry for the 2026 Pardus SPKG4 EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 470 | 366 | 75.5 | 71 | 67 | 486 | 439 | 721 | 75 | 569 | 405 | 962 | 58 | 57.7 |
| XS | 487 | 376 | 75 | 71.5 | 82 | 505 | 455 | 739 | 75 | 577 | 405 | 970 | 55 | 57.4 |
| S | 500 | 384 | 74 | 72 | 95 | 527 | 468 | 751 | 73 | 582 | 405 | 976 | 52 | 57.4 |
| M | 516 | 391 | 74 | 72.5 | 109 | 539 | 482 | 767 | 73 | 587 | 405 | 981 | 49 | 57.4 |
| L | 530 | 401 | 73.5 | 73 | 124 | 557 | 496 | 782 | 70 | 594 | 405 | 988 | 46 | 57.4 |
| XL | 550 | 410 | 73.5 | 73.5 | 142 | 573 | 516 | 802 | 70 | 601 | 405 | 996 | 43 | 57.4 |
| XXL | 571 | 420 | 73.5 | 73.5 | 164 | 590 | 557 | 833 | 70 | 618 | 405 | 1013 | 43 | 57.4 |
All measurements in millimetres unless marked (°) for angles.
