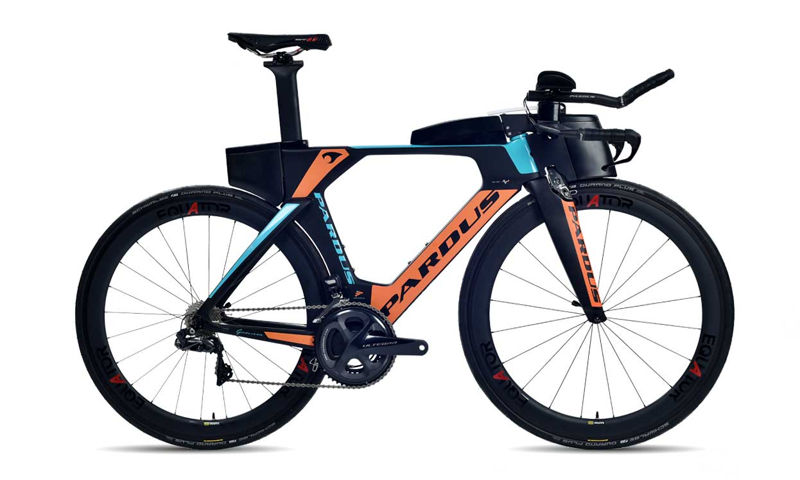

2021 Pardus Gomera geometry
Full frame geometry for the 2021 Pardus Gomera, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 479 | 372 | 78 | 72.5 | 80 | 474 | 65 | 387 | 929 | 43 |
| 50 | 480 | 398 | 78 | 72.8 | 80 | 501 | 65 | 387 | 954 | 43 |
| 52 | 506 | 415 | 78 | 72.8 | 107 | 523 | 65 | 387 | 978 | 43 |
| 54 | 532 | 431 | 78 | 72.8 | 135 | 544 | 65 | 387 | 1002 | 43 |
| 56 | 558 | 447 | 78 | 72.8 | 160 | 566 | 65 | 387 | 1027 | 43 |
All measurements in millimetres unless marked (°) for angles.
