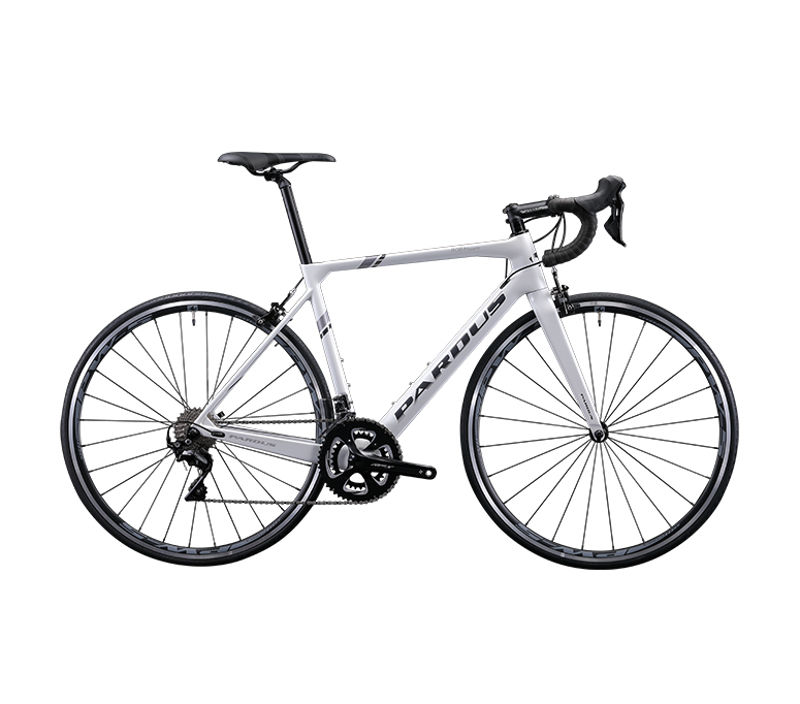

2021 Pardus Robin Sport geometry
Full frame geometry for the 2021 Pardus Robin Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 364 | 75 | 70.5 | 105 | 500 | 430 | 725 | 75 | 570 | 405 | 963 | 45 | 75 |
| S | 530 | 378 | 74.5 | 72.5 | 120 | 525 | 472 | 743 | 75 | 574 | 405 | 967 | 45 | 59 |
| M | 546 | 384 | 74.5 | 73 | 140 | 535 | 490 | 768 | 70 | 580 | 405 | 975 | 45 | 56 |
| L | 565 | 388 | 74 | 73 | 160 | 560 | 510 | 784 | 70 | 590 | 405 | 985 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
