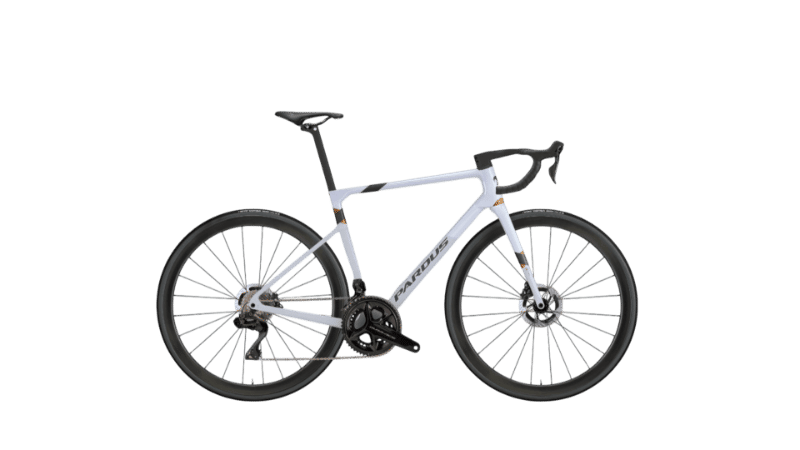

2026 Pardus Robin Evo geometry
Full frame geometry for the 2026 Pardus Robin Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 372 | 75 | 71 | 91 | 504 | 453 | 734 | 74 | 574 | 410 | 977 | 50 | 65 |
| S | 517 | 381 | 74.5 | 72.5 | 110 | 525 | 464 | 753 | 73 | 578 | 410 | 978 | 50 | 56 |
| M | 538 | 387 | 74 | 73 | 130 | 541 | 487 | 771 | 72 | 581 | 410 | 980 | 45 | 58 |
| L | 554 | 391 | 73.5 | 73 | 147 | 555 | 502 | 789 | 72 | 590 | 410 | 990 | 45 | 58 |
| XL | 574 | 400 | 73 | 73 | 167 | 576 | 521 | 808 | 72 | 604 | 410 | 1004 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
