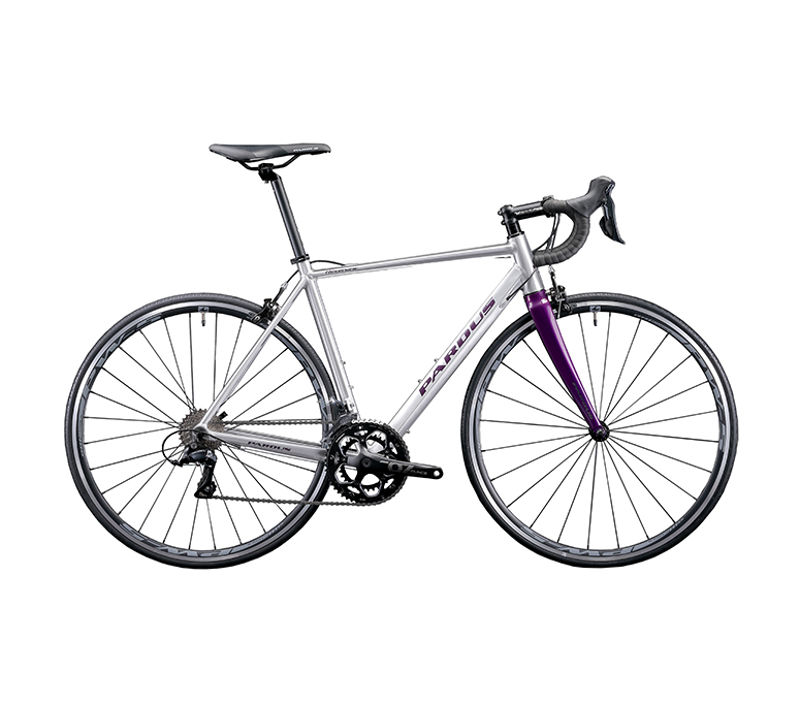

2021 Pardus Revenant geometry
Full frame geometry for the 2021 Pardus Revenant, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 356 | 73 | 72 | 120 | 515 | 460 | 717 | 69 | 555 | 405 | 949 | 45 | 62 |
| S | 530 | 363 | 73 | 72 | 130 | 525 | 490 | 737 | 69 | 564 | 406 | 959 | 45 | 62 |
| M | 539 | 370 | 73 | 72 | 140 | 535 | 520 | 757 | 69 | 574 | 405 | 969 | 45 | 62 |
| L | 549 | 377 | 73 | 72 | 150.7 | 545 | 550 | 777 | 69 | 584 | 405 | 979 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
