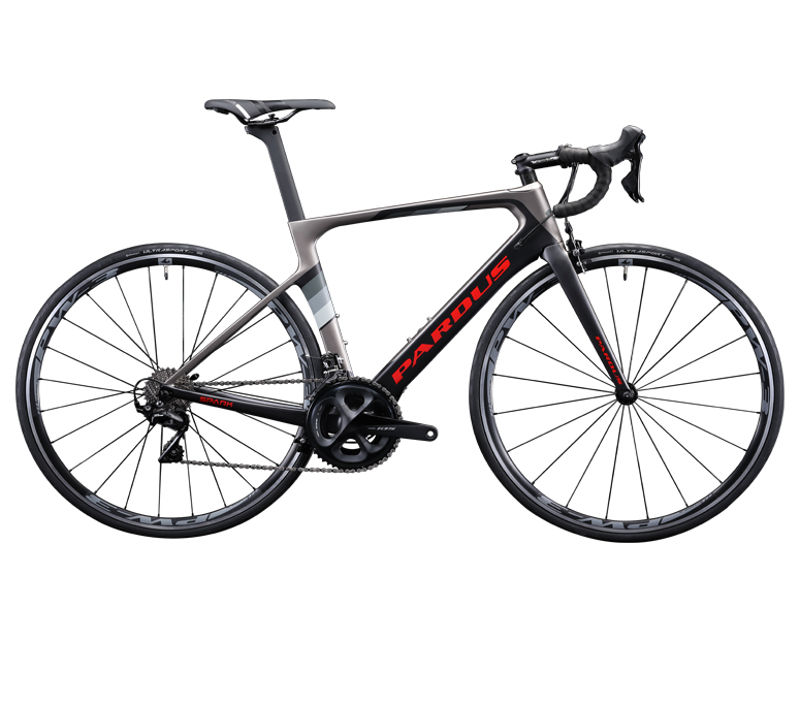

2021 Pardus Spark geometry
Full frame geometry for the 2021 Pardus Spark, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 504 | 370 | 74.5 | 70.5 | 110 | 510 | 68 | 405 | 980 | 53 |
| 49 | 510 | 379 | 74.5 | 71 | 115 | 520 | 68 | 405 | 986 | 53 |
| 52 | 531 | 383 | 74 | 72 | 130 | 535 | 68 | 405 | 980 | 45 |
| 54 | 551 | 388 | 73.6 | 72.5 | 150 | 550 | 68 | 405 | 987 | 45 |
| 56 | 572 | 393 | 73.3 | 73 | 170 | 565 | 68 | 405 | 994 | 45 |
| 58 | 592 | 399 | 73 | 73.3 | 190 | 580 | 68 | 405 | 1002 | 45 |
All measurements in millimetres unless marked (°) for angles.
