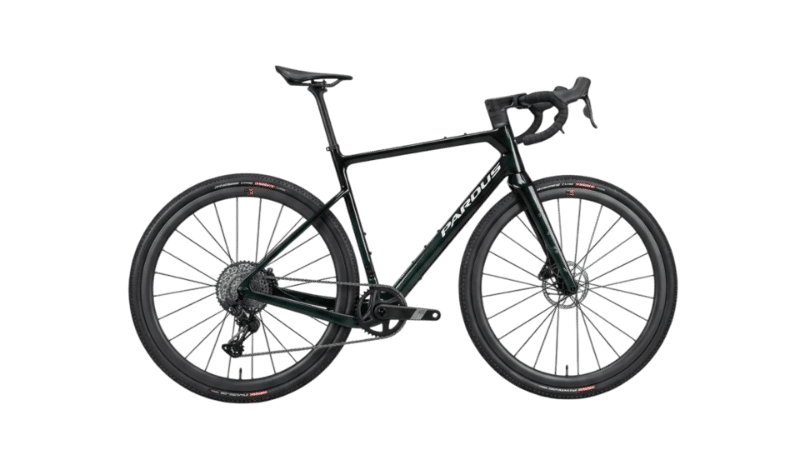

2026 Pardus Uragano Sport geometry
Full frame geometry for the 2026 Pardus Uragano Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 356 | 75 | 70 | 115 | 499 | 480 | 760 | 72 | 582 | 430 | 1002 | 50 | 74 |
| S | 554 | 366 | 74.5 | 70 | 135 | 520 | 500 | 778 | 72 | 599 | 430 | 1019 | 50 | 74 |
| M | 567 | 372 | 74 | 70.5 | 147 | 534 | 520 | 798 | 72 | 605 | 430 | 1024 | 50 | 74 |
| L | 582 | 378 | 73.5 | 71 | 159 | 550 | 540 | 808 | 72 | 606 | 430 | 1025 | 45 | 73 |
| XL | 600 | 386 | 73.5 | 71 | 178 | 564 | 560 | 825 | 72 | 620 | 430 | 1039 | 45 | 73 |
| XXL | 624 | 400 | 73 | 71 | 203 | 591 | 580 | 854 | 72 | 642 | 430 | 1062 | 45 | 73 |
All measurements in millimetres unless marked (°) for angles.
