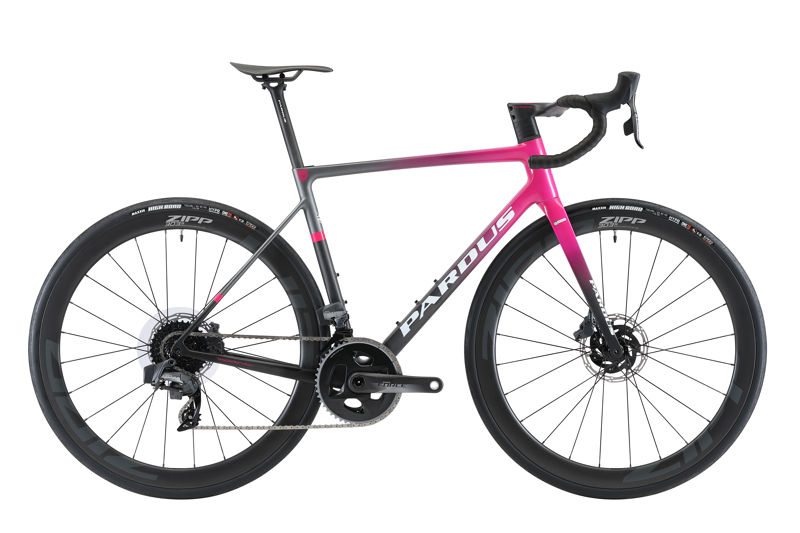

2021 Pardus Robin Evo geometry
Full frame geometry for the 2021 Pardus Robin Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 358 | 73 | 70.5 | 114.4 | 513 | 481 | 754 | 68 | 575 | 415 | 980 | 53 |
| S | 535 | 367 | 73 | 72.2 | 134.2 | 530 | 507 | 779 | 68 | 577 | 415 | 982 | 53 |
| M | 555 | 378 | 73 | 73 | 154 | 546 | 526 | 800 | 68 | 575 | 415 | 980 | 43 |
| L | 585 | 385 | 73 | 73.5 | 178.7 | 563 | 557 | 828 | 68 | 587 | 415 | 993 | 43 |
All measurements in millimetres unless marked (°) for angles.
