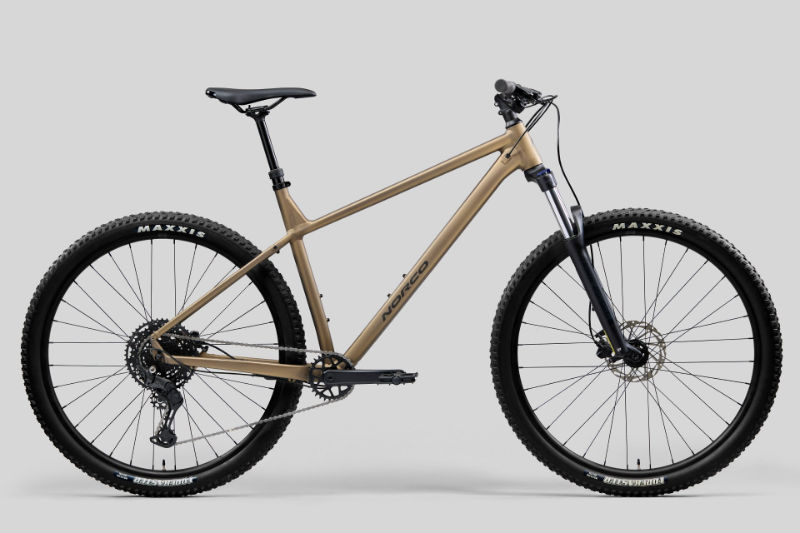

2025 Norco Storm geometry
Full frame geometry for the 2025 Norco Storm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 410 | 74.5 | 67 | 125 | 579 | 430 | 646 | 32 | 430 | 1129 | 42 | 104 |
| M | 628 | 440 | 74.8 | 67 | 105 | 611 | 470 | 671 | 52 | 440 | 1171 | 46 | 108 |
| L | 637 | 470 | 75 | 67 | 115 | 641 | 510 | 718 | 52 | 440 | 1205 | 46 | 108 |
| XL | 646 | 500 | 75.3 | 67 | 125 | 670 | 550 | 738 | 52 | 440 | 1239 | 46 | 108 |
| XXL | 655 | 530 | 75.5 | 67 | 135 | 699 | 590 | 769 | 52 | 440 | 1273 | 46 | 108 |
All measurements in millimetres unless marked (°) for angles.
