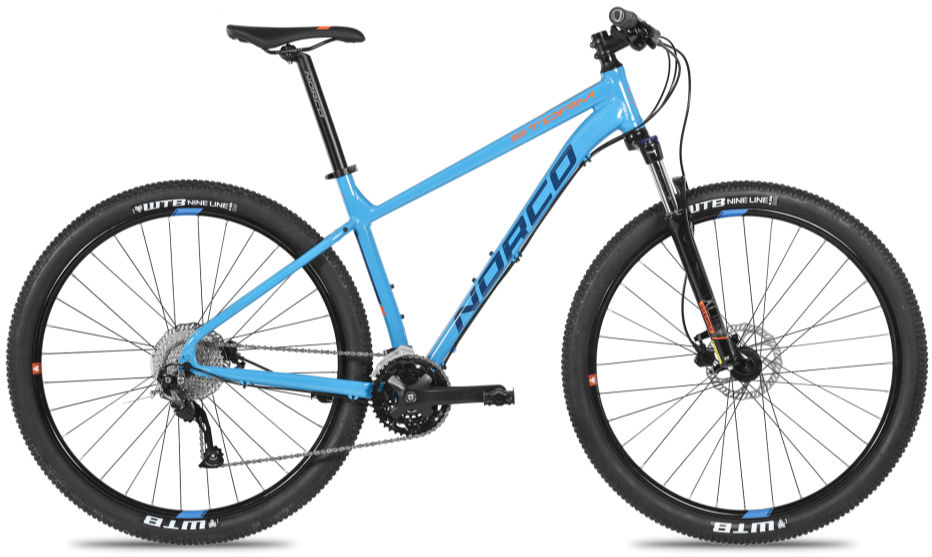

2018 Norco Storm geometry
Full frame geometry for the 2018 Norco Storm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 605 | 336 | 73.5 | 68.5 | 110 | 515 | 340 | 731 | 55 | 600 | 435 | 1029 |
| XS | 616 | 353 | 73.1 | 68.8 | 120 | 540 | 390 | 724 | 55 | 618 | 435 | 1048 |
| S (27.5) | 626 | 375 | 72.7 | 69 | 130 | 570 | 430 | 733 | 55 | 642 | 435 | 1071 |
| M (27.5) | 636 | 397 | 72.3 | 69.2 | 145 | 600 | 470 | 776 | 50 | 666 | 435 | 1096 |
| S (29) | 644 | 383 | 72.8 | 69.3 | 115 | 582 | 430 | 746 | 68 | 654 | 450 | 1095 |
| M (29) | 654 | 405 | 72.4 | 69.5 | 130 | 612 | 470 | 792 | 63 | 678 | 450 | 1120 |
| L | 664 | 426 | 72 | 69.8 | 140 | 642 | 510 | 798 | 63 | 700 | 450 | 1143 |
| XL | 675 | 447 | 71.6 | 70 | 150 | 672 | 550 | 809 | 63 | 722 | 450 | 1165 |
All measurements in millimetres unless marked (°) for angles.
