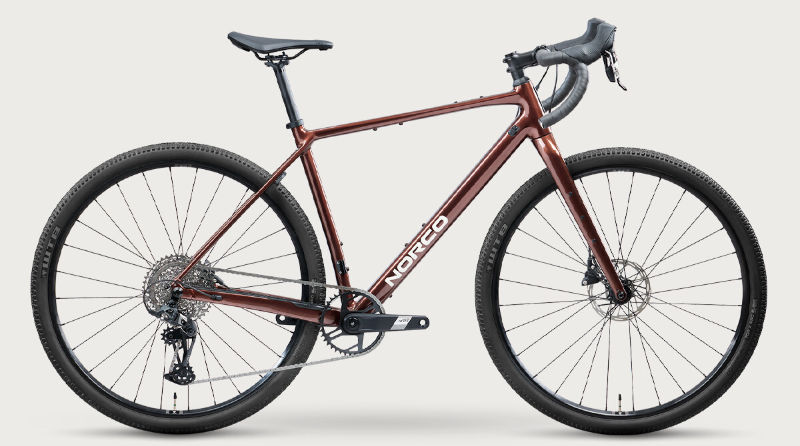

2027 Norco Search Aluminum Gen 3 geometry
Full frame geometry for the 2027 Norco Search Aluminum Gen 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 554 | 385 | 74.5 | 69.5 | 100 | 539 | 440 | 682 | 75 | 425 | 1037 | 51 | 80 |
| 2 | 564 | 400 | 74.3 | 69.5 | 110 | 559 | 475 | 715 | 75 | 425 | 1056 | 51 | 80 |
| 3 | 587 | 415 | 74 | 69.5 | 135 | 583 | 510 | 748 | 75 | 427.5 | 1082 | 51 | 80 |
| 4 | 611 | 430 | 73.8 | 69.5 | 160 | 608 | 545 | 781 | 75 | 430 | 1108 | 51 | 80 |
| 5 | 634 | 445 | 73.5 | 69.5 | 185 | 633 | 580 | 814 | 75 | 430 | 1132 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
