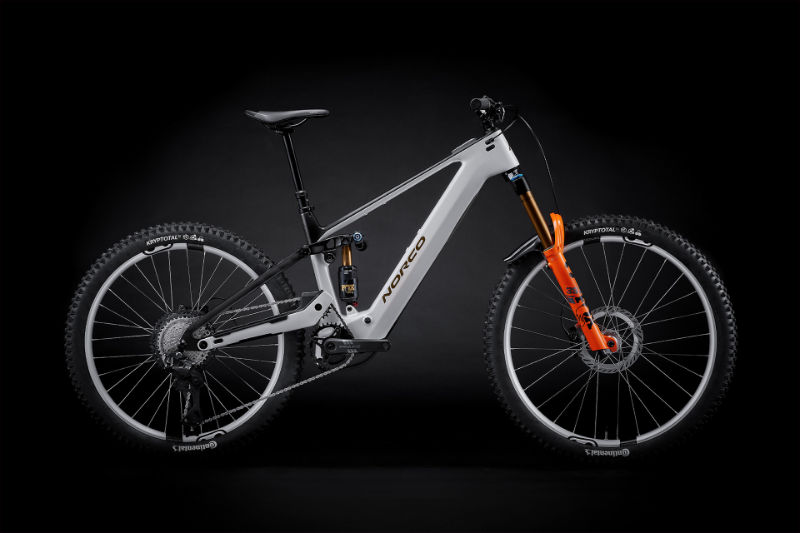

2026 Norco Range VLT CX geometry
Full frame geometry for the 2026 Norco Range VLT CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 631 | 441 | 76.5 | 63.5 | 115 | 589 | 395 | 705 | 20.5 | 432 | 1228 | 44 | 138 |
| S3 | 640 | 466 | 77 | 63.5 | 125 | 613 | 415 | 711 | 20.5 | 436 | 1261 | 44 | 138 |
| S4 | 650 | 491 | 77.3 | 63.5 | 135 | 637 | 445 | 718 | 20.5 | 440 | 1295 | 44 | 138 |
| S5 | 659 | 516 | 77.5 | 63.5 | 145 | 661 | 475 | 733 | 20.5 | 444 | 1328 | 44 | 138 |
All measurements in millimetres unless marked (°) for angles.
