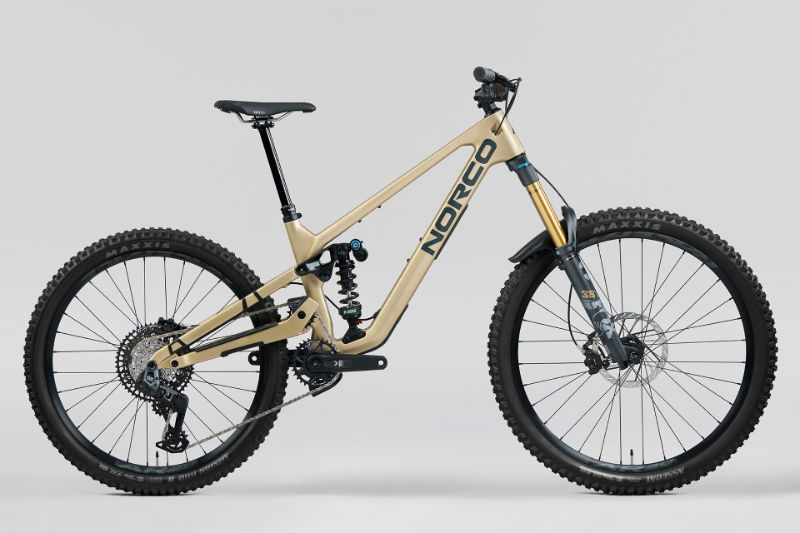

2026 Norco Sight Gen 5 160 geometry
Full frame geometry for the 2026 Norco Sight Gen 5 160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SZ1 | 622 | 416 | 76.3 | 63.5 | 105 | 567 | 350 | 678 | 20.5 | 420 | 1187 | 44 | 140 |
| SZ2 | 631 | 441 | 76.5 | 63.5 | 115 | 591 | 370 | 684 | 20.5 | 424 | 1220 | 44 | 140 |
| SZ3 | 640 | 466 | 77 | 63.5 | 125 | 615 | 385 | 690 | 20.5 | 428 | 1253 | 44 | 140 |
| SZ4 | 650 | 491 | 77.3 | 63.5 | 135 | 639 | 430 | 713 | 20.5 | 432 | 1287 | 44 | 140 |
| SZ5 | 659 | 516 | 77.5 | 63.5 | 145 | 663 | 445 | 725 | 20.5 | 436 | 1320 | 44 | 140 |
All measurements in millimetres unless marked (°) for angles.
