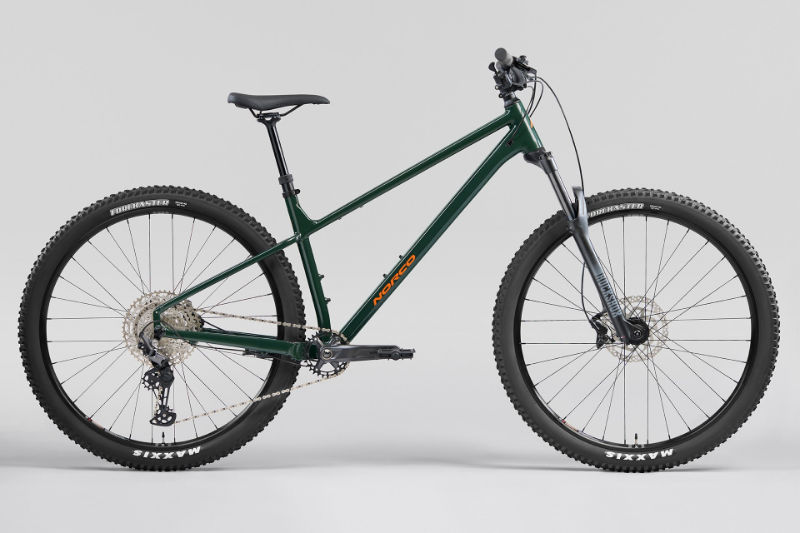

2025 Norco Charger geometry
Full frame geometry for the 2025 Norco Charger, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 420 | 75 | 65 | 140 | 585 | 370 | 616 | 34 | 425 | 1162 | 42 | 121 |
| M | 633 | 450 | 75.3 | 65 | 120 | 617 | 400 | 667 | 54 | 430 | 1203 | 51 | 121 |
| L | 642 | 480 | 75.5 | 65 | 130 | 646 | 430 | 667 | 54 | 430 | 1237 | 51 | 121 |
| XL | 651 | 510 | 75.8 | 65 | 140 | 675 | 480 | 709 | 54 | 435 | 1277 | 51 | 121 |
| XXL | 661 | 540 | 76 | 65 | 150 | 705 | 530 | 744 | 54 | 435 | 1311 | 51 | 121 |
All measurements in millimetres unless marked (°) for angles.
