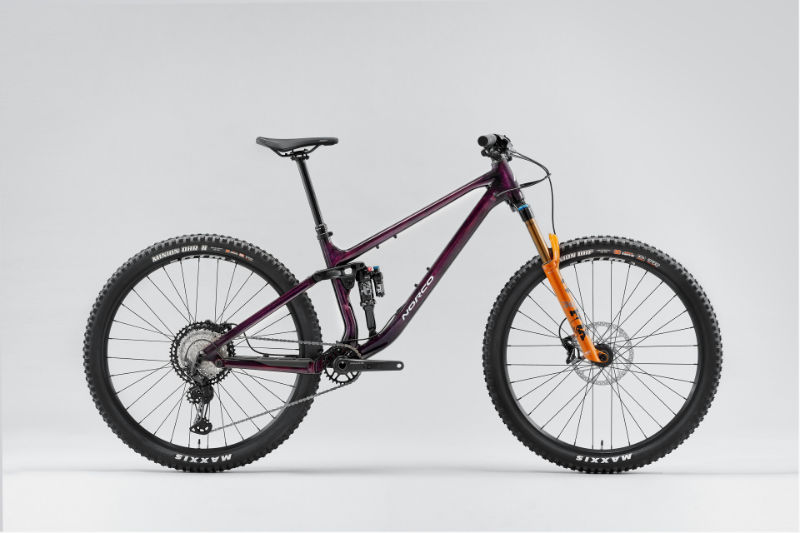

2026 Norco Fluid FS geometry
Full frame geometry for the 2026 Norco Fluid FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 420 | 76 | 65 | 110 | 574 | 360 | 678 | 30 | 425 | 1166 | 44 | 128 |
| M | 626 | 450 | 76.3 | 65 | 120 | 602 | 390 | 690 | 30 | 430 | 1205 | 44 | 128 |
| L | 635 | 480 | 76.7 | 65 | 130 | 630 | 410 | 699 | 30 | 435 | 1245 | 44 | 128 |
| XL | 644 | 510 | 77 | 65 | 140 | 659 | 460 | 736 | 30 | 440 | 1284 | 44 | 128 |
| XXL | 653 | 540 | 77.3 | 65 | 150 | 687 | 510 | 767 | 30 | 445 | 1323 | 44 | 128 |
All measurements in millimetres unless marked (°) for angles.
