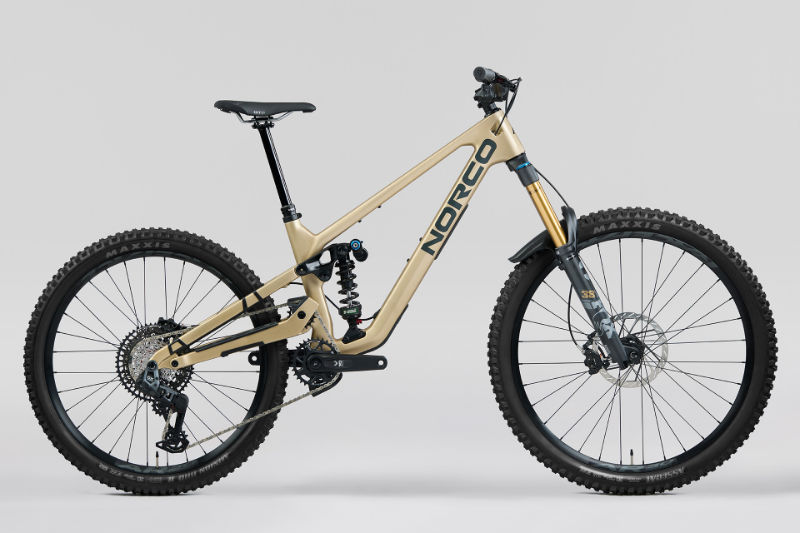

2026 Norco Sight Gen 5 geometry
Full frame geometry for the 2026 Norco Sight Gen 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 618 | 422.5 | 77 | 64 | 105 | 565 | 350 | 673 | 25 | 426 | 1186 | 44 | 135 |
| 2 | 627 | 447.5 | 77.3 | 64 | 115 | 589 | 370 | 679 | 25 | 430 | 1219 | 44 | 135 |
| 3 | 636 | 472.5 | 77.5 | 64 | 125 | 613 | 385 | 685 | 25 | 434 | 1253 | 44 | 135 |
| 4 | 645 | 497.5 | 77.8 | 64 | 135 | 637 | 430 | 708 | 25 | 438 | 1286 | 44 | 135 |
| 5 | 654 | 522.5 | 78 | 64 | 145 | 661 | 445 | 720 | 25 | 442 | 1319 | 44 | 135 |
All measurements in millimetres unless marked (°) for angles.
