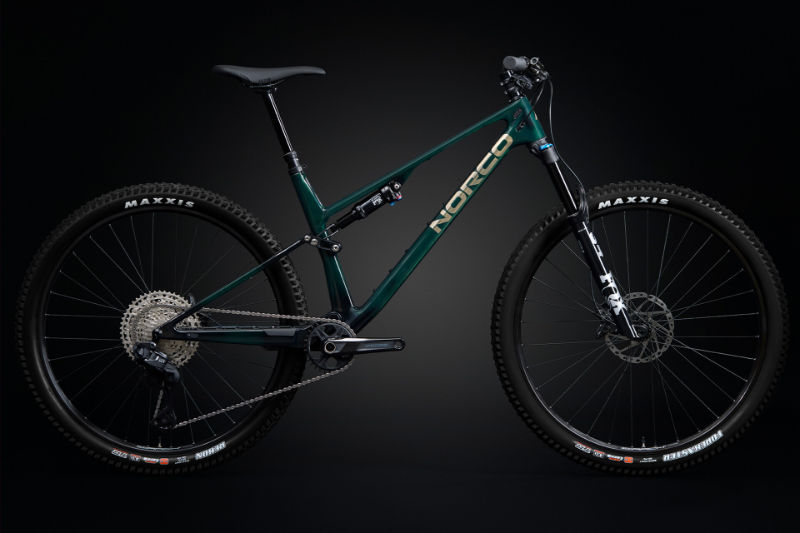

2026 Norco Revolver Gen 4 130 geometry
Full frame geometry for the 2026 Norco Revolver Gen 4 130, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SZ1 | 592 | 418 | 74.5 | 66 | 90 | 581 | 392 | 683 | 32 | 422 | 1135 | 44 | 118 |
| SZ2 | 601 | 443 | 74.8 | 66 | 100 | 606 | 434 | 687 | 32 | 426 | 1168 | 44 | 118 |
| SZ3 | 611 | 468 | 75 | 66 | 110 | 631 | 453 | 691 | 32 | 430 | 1201 | 44 | 118 |
| SZ4 | 620 | 493 | 75.3 | 66 | 120 | 655 | 477 | 698 | 32 | 434 | 1234 | 44 | 118 |
| SZ5 | 629 | 518 | 75.5 | 66 | 130 | 680 | 491 | 704 | 32 | 438 | 1267 | 44 | 118 |
All measurements in millimetres unless marked (°) for angles.
