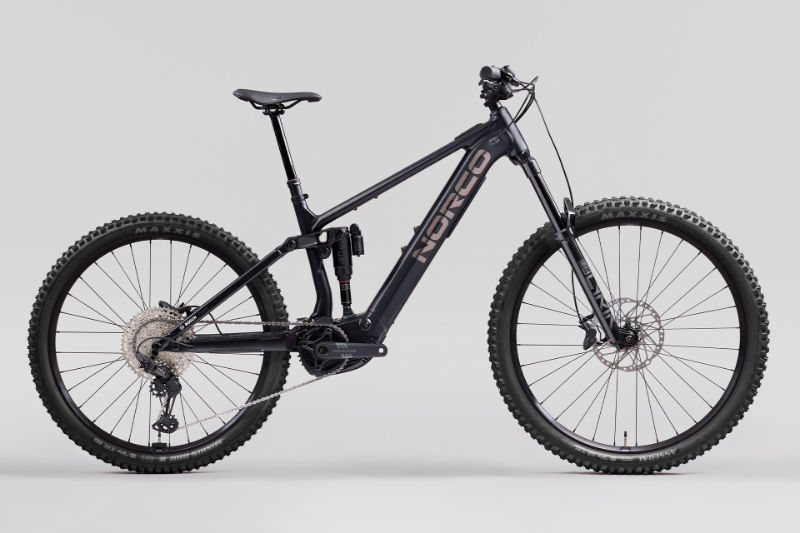

2027 Norco Sight VLT Bosch A geometry
Full frame geometry for the 2027 Norco Sight VLT Bosch A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 616 | 430 | 77 | 64 | 100 | 571 | 385 | 696 | 432 | 1202 | 44 | 133 |
| S2 | 625 | 450 | 77.3 | 64 | 110 | 587 | 395 | 704 | 436 | 1226 | 44 | 133 |
| S3 | 634 | 470 | 77.5 | 64 | 120 | 604 | 415 | 706 | 440 | 1255 | 44 | 133 |
| S4 | 643 | 490 | 77.8 | 64 | 130 | 621 | 445 | 723 | 444 | 1283 | 44 | 133 |
| S5 | 652 | 510 | 78 | 64 | 140 | 638 | 475 | 745 | 448 | 1311 | 44 | 133 |
All measurements in millimetres unless marked (°) for angles.
