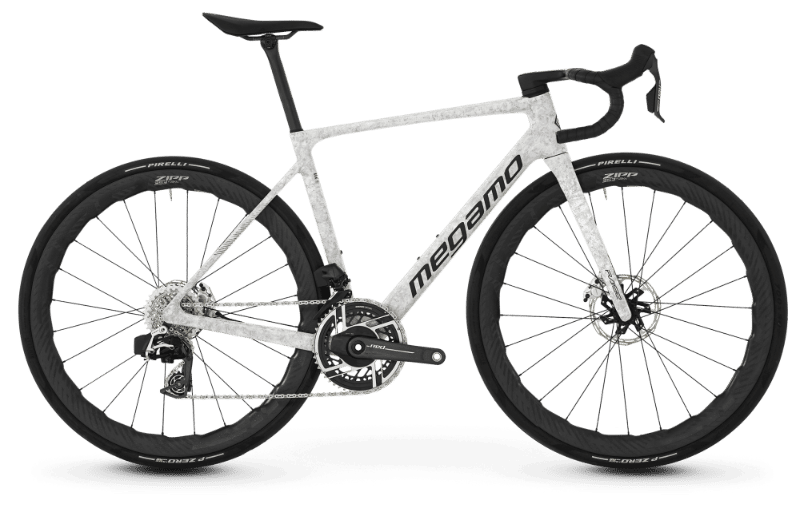

2026 Megamo Raise geometry
Full frame geometry for the 2026 Megamo Raise, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 376 | 75.5 | 71.8 | 102 | 507 | 442 | 69 | 410 | 970 |
| S | 521 | 383 | 74.5 | 72.5 | 115 | 527 | 460 | 69 | 410 | 975 |
| M | 534 | 384 | 74 | 73 | 130 | 538 | 482 | 69 | 410 | 980 |
| L | 550 | 396 | 74 | 73.5 | 145 | 554 | 503 | 69 | 410 | 990 |
| XL | 576 | 402 | 73.5 | 73.5 | 172 | 572 | 535 | 69 | 410 | 1003 |
All measurements in millimetres unless marked (°) for angles.
