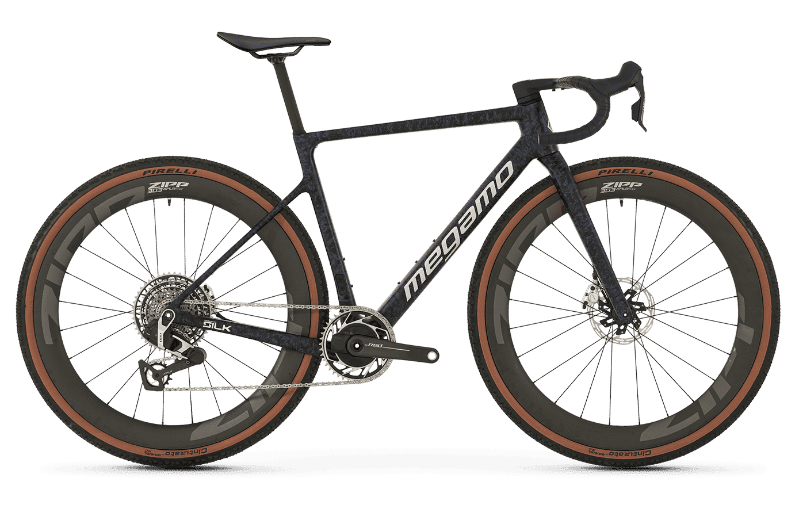

2026 Megamo Silk geometry
Full frame geometry for the 2026 Megamo Silk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 372 | 74.5 | 70 | 90 | 515 | 450 | 70 | 425 | 1000 |
| S | 535 | 382 | 74 | 70 | 110 | 535 | 470 | 70 | 425 | 1017 |
| M | 557 | 395 | 74 | 71 | 130 | 555 | 500 | 71 | 425 | 1029 |
| L | 581 | 408 | 73.5 | 71 | 155 | 580 | 520 | 71 | 425 | 1050 |
| XL | 605 | 416 | 73.5 | 71 | 180 | 595 | 545 | 71 | 425 | 1066 |
All measurements in millimetres unless marked (°) for angles.
