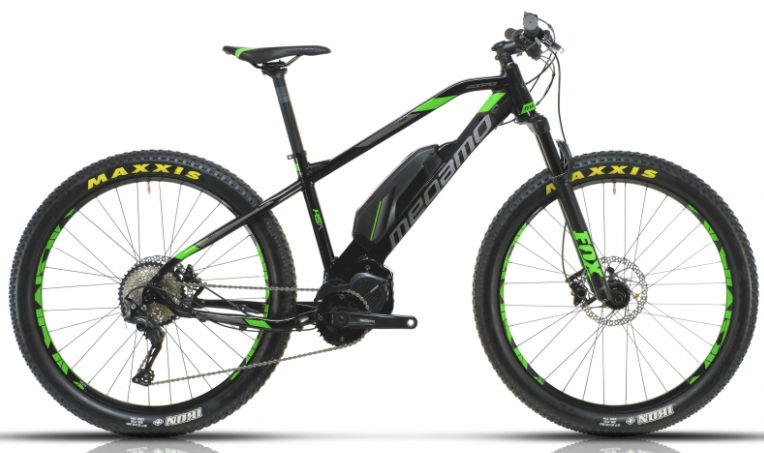

2017 Megamo Aspe Plus geometry
Full frame geometry for the 2017 Megamo Aspe Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 626 | 415 | 73 | 69 | 120 | 420 | 858 | 30 | 475 |
| S | 626 | 373 | 73 | 69 | 120 | 395 | 845 | 30 | 475 |
| L | 636 | 415 | 73 | 69 | 130 | 483 | 896 | 30 | 475 |
| XL | 645 | 432 | 73 | 69 | 140 | 533 | 926 | 30 | 475 |
All measurements in millimetres unless marked (°) for angles.
