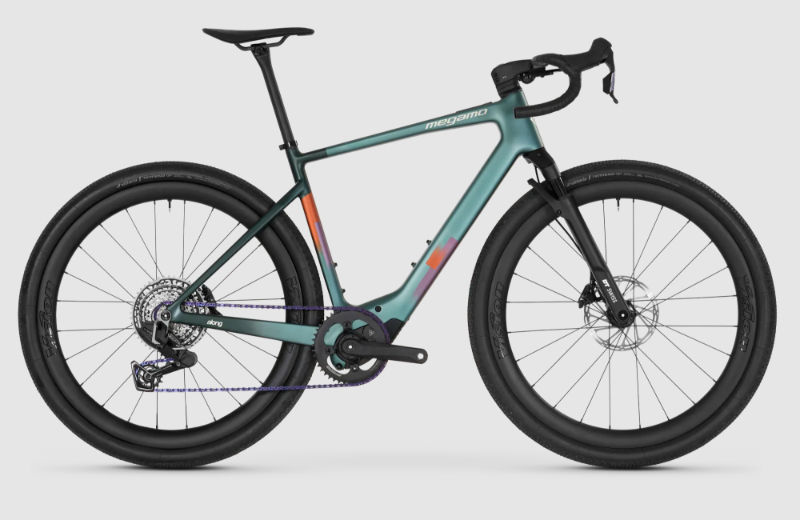

2027 Megamo Along geometry
Full frame geometry for the 2027 Megamo Along, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 562 | 366 | 74.3 | 69.8 | 119 | 525 | 450 | 80 | 435 | 1025 |
| M | 585 | 388 | 74 | 70 | 142 | 556 | 500 | 80 | 435 | 1066 |
| L | 610 | 406 | 74 | 70 | 169 | 581 | 540 | 80 | 435 | 1080 |
| XL | 635 | 420 | 74 | 70 | 196 | 602 | 580 | 80 | 435 | 1103 |
All measurements in millimetres unless marked (°) for angles.
