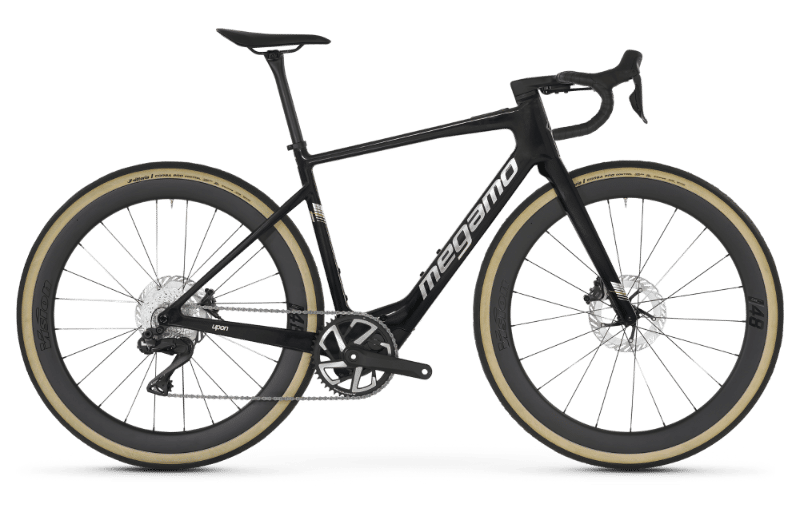

2027 Megamo Upon geometry
Full frame geometry for the 2027 Megamo Upon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 376 | 75.3 | 70.8 | 119 | 522 | 450 | 87 | 435 | 1023 |
| M | 578 | 398 | 75 | 71 | 142 | 553 | 500 | 87 | 435 | 1051 |
| L | 603 | 416 | 75 | 71 | 169 | 578 | 540 | 87 | 435 | 1078 |
| XL | 628 | 430 | 75 | 71 | 196 | 599 | 580 | 87 | 435 | 1103 |
All measurements in millimetres unless marked (°) for angles.
