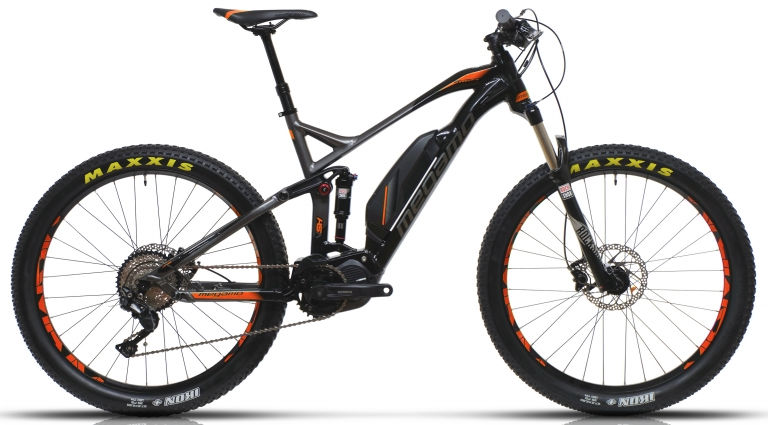

2017 Megamo Ayron geometry
Full frame geometry for the 2017 Megamo Ayron, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 400 | 74 | 67 | 110 | 406 | 843 | 30 | 450 |
| M | 622 | 420 | 74 | 67 | 120 | 460 | 876 | 30 | 450 |
| L | 640 | 460 | 74 | 67 | 140 | 520 | 916 | 30 | 450 |
All measurements in millimetres unless marked (°) for angles.
