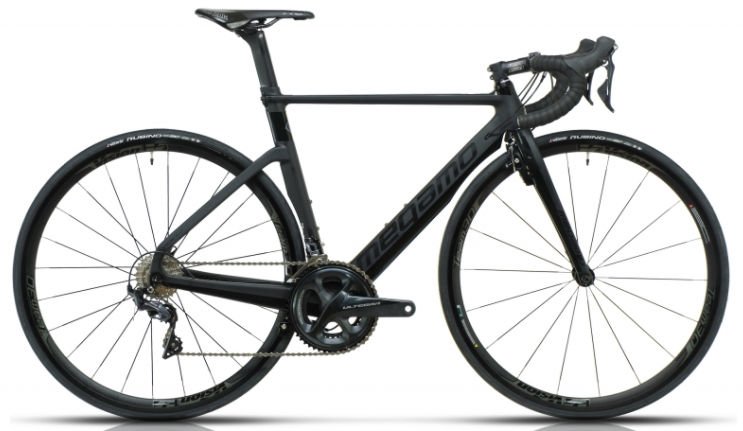

2017 Megamo Raise geometry
Full frame geometry for the 2017 Megamo Raise, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 375 | 74 | 71 | 115 | 458 | 759 | 64 | 415 |
| S | 530 | 385 | 74 | 72 | 130 | 458 | 767 | 64 | 415 |
| M | 553 | 393 | 74 | 73 | 150 | 498 | 800 | 64 | 415 |
| L | 574 | 400 | 73.5 | 73.5 | 170 | 523 | 824 | 64 | 415 |
| XL | 593 | 412 | 73.5 | 73.5 | 190 | 523 | 833 | 64 | 415 |
All measurements in millimetres unless marked (°) for angles.
