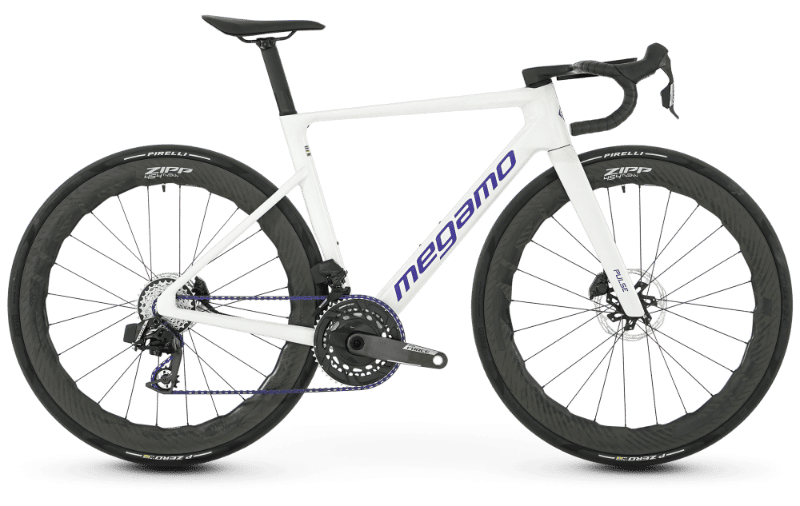

2026 Megamo Pulse geometry
Full frame geometry for the 2026 Megamo Pulse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 503 | 375 | 74.5 | 71.5 | 100 | 515 | 460 | 69 | 410 | 972 |
| S | 518 | 380 | 74 | 71.5 | 115 | 529 | 480 | 69 | 410 | 982 |
| M | 538 | 385 | 73.5 | 71.5 | 135 | 544 | 500 | 69 | 410 | 986 |
| L | 557 | 390 | 73.3 | 71.5 | 155 | 558 | 520 | 69 | 410 | 997 |
| XL | 581 | 395 | 73.3 | 71.5 | 180 | 576 | 540 | 69 | 410 | 1009 |
All measurements in millimetres unless marked (°) for angles.
