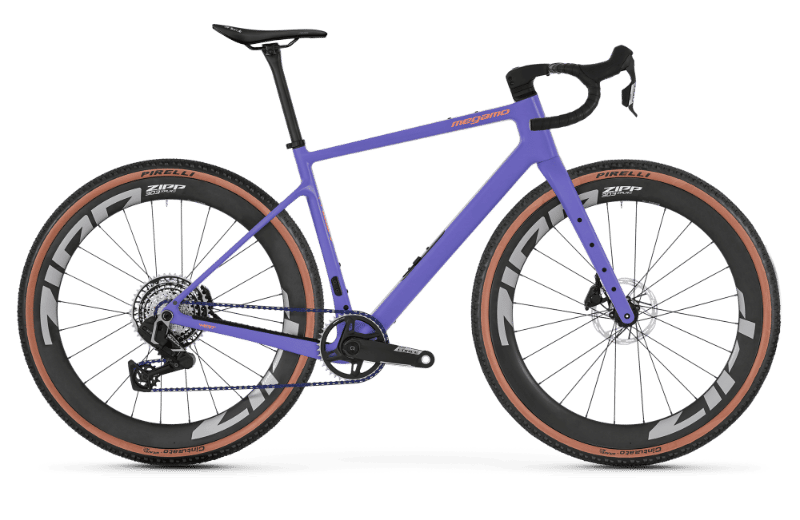

2026 Megamo West geometry
Full frame geometry for the 2026 Megamo West, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 378 | 74.5 | 69.5 | 120 | 530 | 450 | 77 | 430 | 1031 |
| S | 563 | 391 | 74.3 | 69.8 | 135 | 550 | 470 | 77 | 430 | 1047 |
| M | 576 | 400 | 74 | 70 | 150 | 565 | 490 | 75 | 430 | 1059 |
| L | 600 | 405 | 73.8 | 70.3 | 175 | 580 | 510 | 75 | 430 | 1070 |
| XL | 625 | 415 | 73.5 | 70.5 | 200 | 600 | 530 | 75 | 430 | 1086 |
All measurements in millimetres unless marked (°) for angles.
