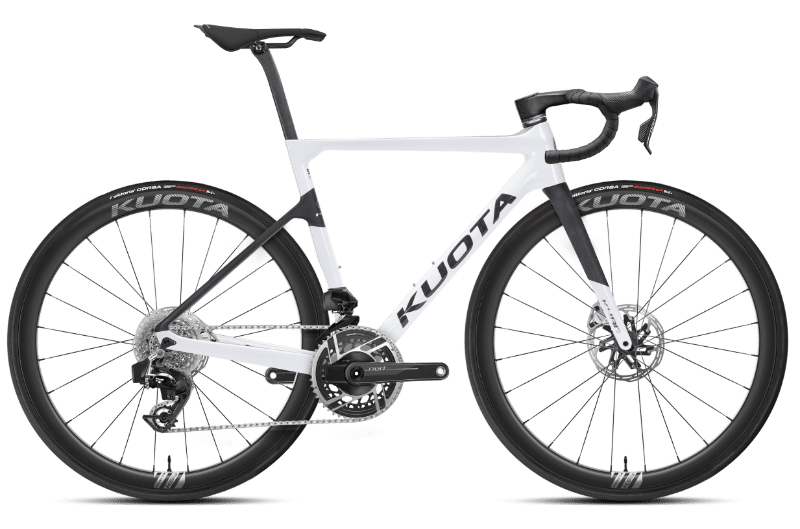

2026 Kuota Khan geometry
Full frame geometry for the 2026 Kuota Khan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 492.5 | 371 | 75.5 | 70.5 | 95 | 498 | 440 | 720 | 68 | 405 | 968 |
| 49 | 510 | 377.5 | 74 | 71.5 | 110 | 524 | 470 | 742 | 68 | 405 | 972 |
| 51 | 526 | 382 | 73.5 | 72 | 125 | 538 | 490 | 762 | 68 | 405 | 977 |
| 54 | 542 | 392 | 73.5 | 72.5 | 140 | 553 | 520 | 782 | 68 | 405 | 988 |
| 57 | 562 | 397 | 73 | 72.8 | 160 | 568.5 | 550 | 810 | 68 | 405 | 996 |
| 60 | 587 | 401 | 73 | 73 | 185 | 580.5 | 580 | 834 | 68 | 405 | 1006 |
All measurements in millimetres unless marked (°) for angles.
