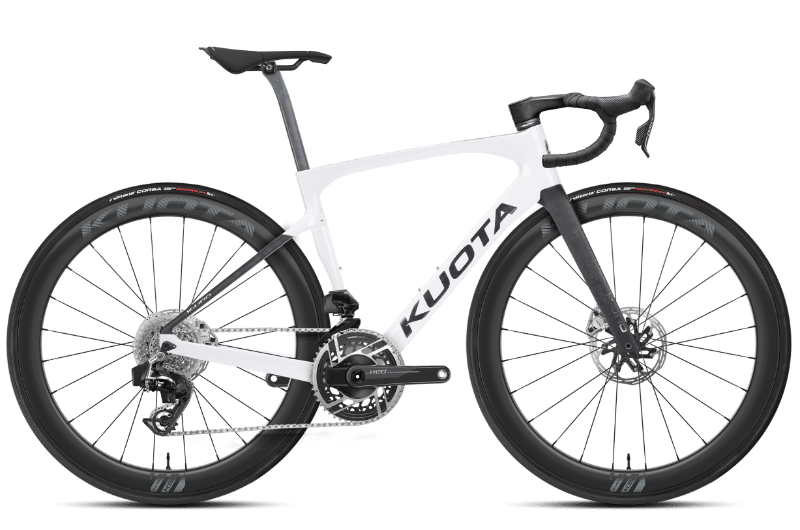

2026 Kuota K-Uno geometry
Full frame geometry for the 2026 Kuota K-Uno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 516 | 368 | 74.6 | 70.5 | 100 | 510 | 420 | 735 | 80 | 420 |
| 50 | 536.5 | 373 | 74.6 | 71 | 120 | 521 | 450 | 760 | 80 | 420 |
| 52 | 557 | 377 | 74.2 | 71.5 | 140 | 535 | 475 | 782 | 80 | 420 |
| 54 | 577 | 382 | 73.7 | 71.8 | 160 | 551 | 500 | 805 | 80 | 420 |
| 56 | 600 | 388 | 73.3 | 72.2 | 180 | 567 | 525 | 826 | 80 | 420 |
| 58 | 619 | 392 | 73 | 72.7 | 200 | 581 | 548 | 848 | 80 | 420 |
All measurements in millimetres unless marked (°) for angles.
