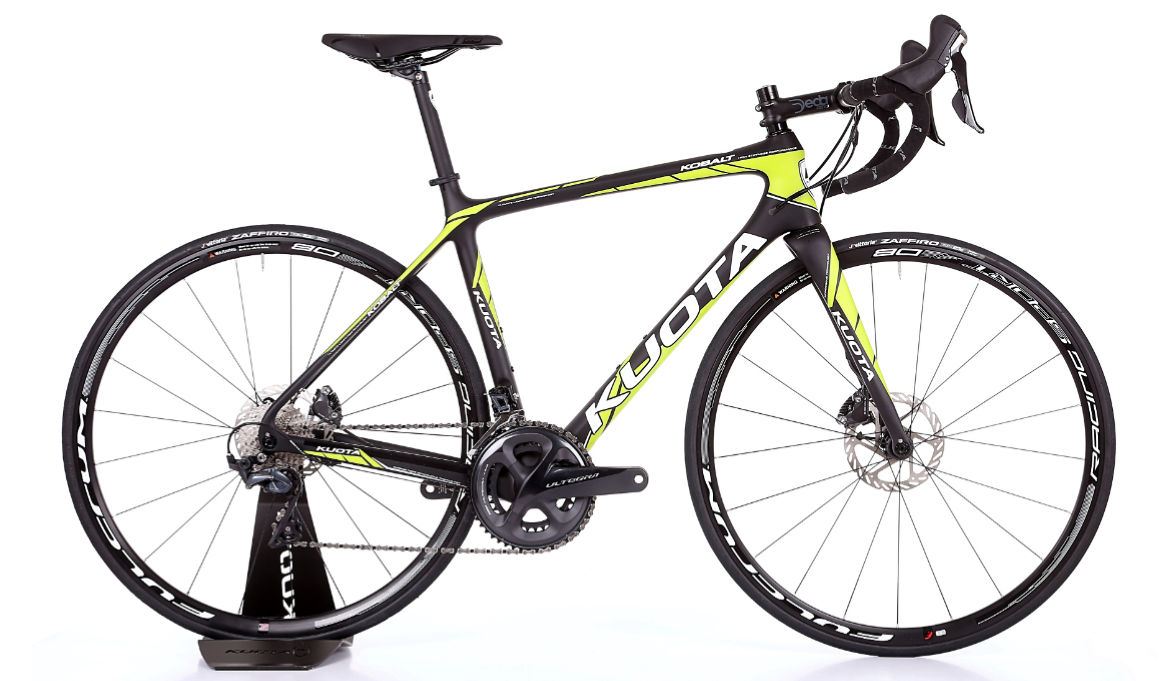

2018 Kuota Kobalt Disc geometry
Full frame geometry for the 2018 Kuota Kobalt Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 525 | 364 | 74.6 | 71 | 125 | 508 | 407 | 771 | 72 | 407 | 973 | 45 |
| XS | 535 | 374 | 74.6 | 72.1 | 130 | 521 | 437 | 778 | 72 | 407 | 971 | 45 |
| S | 546 | 379 | 74.2 | 72.8 | 140 | 534 | 469 | 790 | 72 | 407 | 974 | 45 |
| M | 555 | 381 | 73.7 | 73 | 150 | 543 | 503 | 800 | 70 | 407 | 978 | 45 |
| L | 577 | 388 | 73.3 | 73.5 | 170 | 560 | 522 | 822 | 70 | 407 | 985 | 45 |
| XL | 596 | 392 | 73 | 73.8 | 190 | 573 | 542 | 838 | 68 | 407 | 988 | 45 |
| XXL | 615 | 395 | 72.8 | 73.9 | 210 | 586 | 562 | 862 | 68 | 407 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
