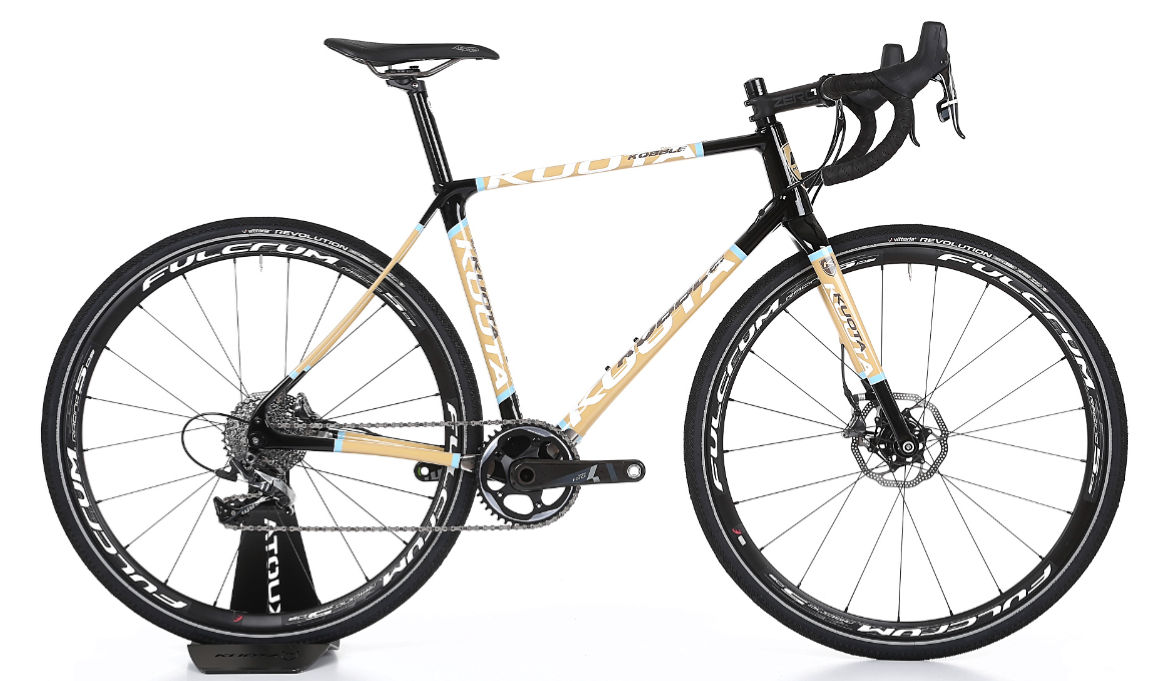

2018 Kuota Kobble geometry
Full frame geometry for the 2018 Kuota Kobble, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 360 | 74.5 | 70 | 110 | 505 | 415 | 723 | 55 | 426 | 1002 | 48 |
| S | 538 | 370 | 74 | 70.5 | 130 | 525 | 450 | 757 | 55 | 426 | 1018 | 48 |
| M | 554 | 381 | 73.5 | 71 | 150 | 545 | 483 | 789 | 52 | 426 | 1027 | 48 |
| L | 578 | 394 | 73 | 71.5 | 170 | 570 | 512 | 818 | 52 | 428 | 1045 | 48 |
| XL | 599 | 406 | 72.5 | 72 | 190 | 595 | 540 | 843 | 52 | 428 | 1057 | 48 |
All measurements in millimetres unless marked (°) for angles.
