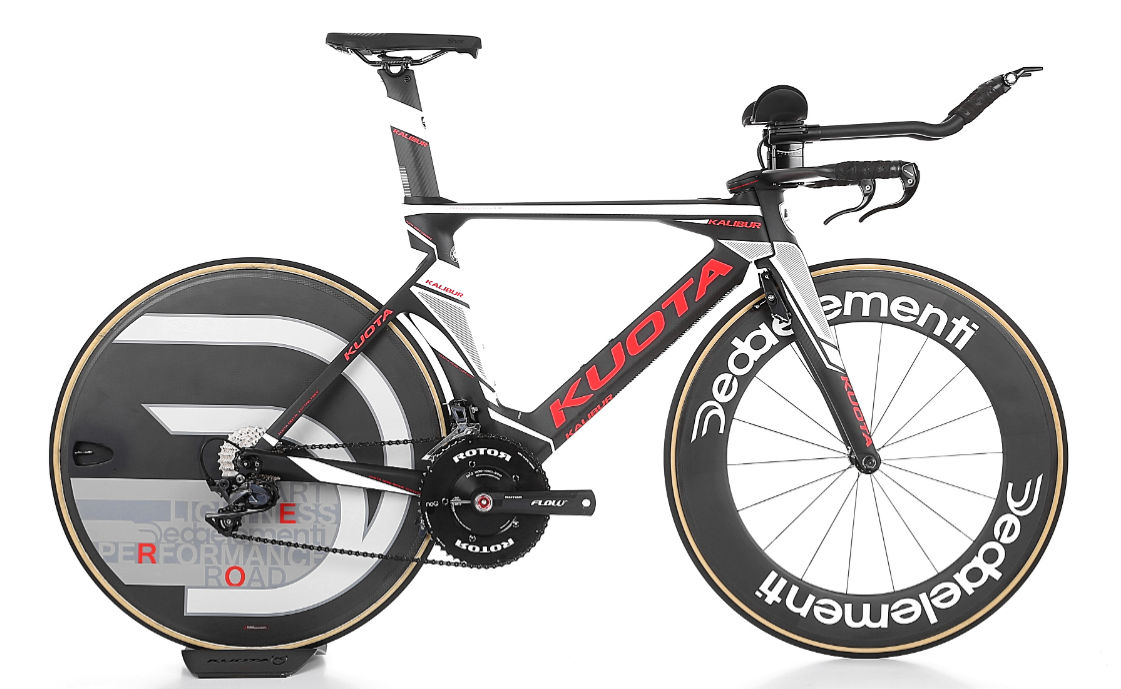

2018 Kuota Kalibur geometry
Full frame geometry for the 2018 Kuota Kalibur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 399 | 78.5 | 71.5 | 92 | 500 | 455 | 716 | 72 | 394 | 978 | 48 |
| S | 501 | 418 | 78.5 | 72 | 98 | 520 | 488 | 748 | 72 | 394 | 989 | 48 |
| M | 512 | 436 | 78.5 | 72 | 112 | 540 | 504 | 766 | 70 | 394 | 1011 | 48 |
| L | 525 | 453 | 78.5 | 72.5 | 121 | 560 | 527 | 784 | 70 | 394 | 1034 | 48 |
| XL | 535 | 477 | 78.5 | 73 | 124 | 585 | 542 | 801 | 70 | 394 | 1034 | 48 |
All measurements in millimetres unless marked (°) for angles.
