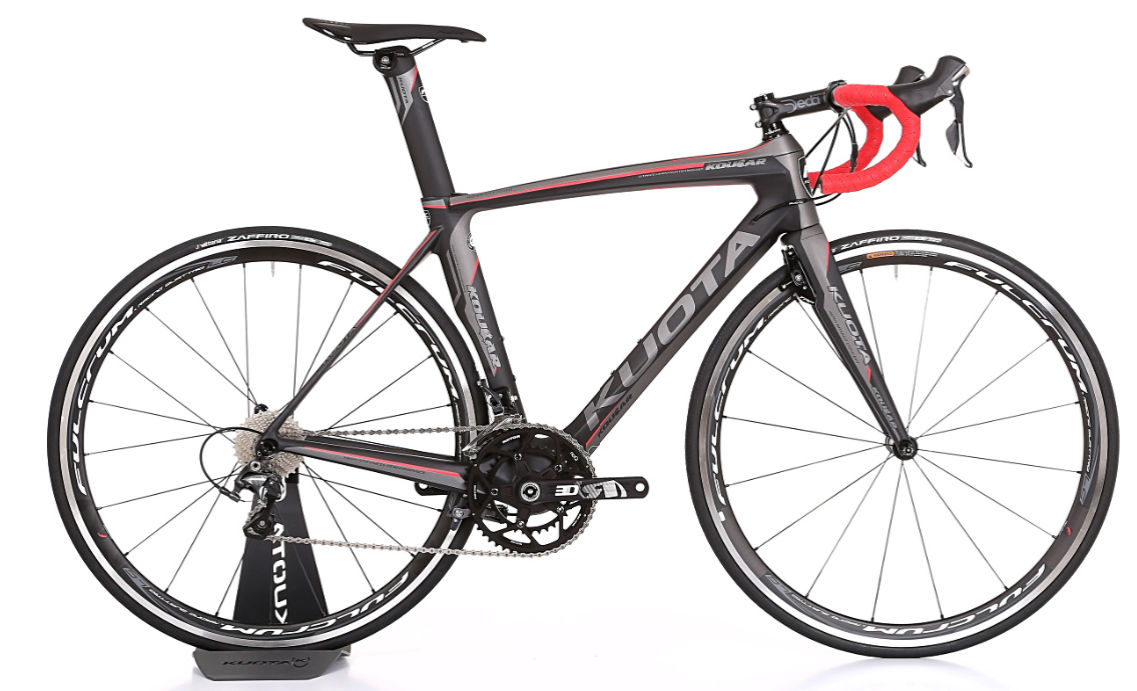

2018 Kuota Kougar geometry
Full frame geometry for the 2018 Kuota Kougar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 359 | 65 | 71 | 120 | 510 | 425 | 763 | 70 | 406 | 969 | 48 |
| S | 522 | 369 | 73.5 | 72 | 125 | 525 | 441 | 766 | 68 | 406 | 968 | 48 |
| M | 543 | 378 | 73.5 | 72.5 | 145 | 540 | 471 | 782 | 68 | 406 | 979 | 48 |
| L | 557 | 389 | 72.4 | 72.5 | 160 | 565 | 507 | 801 | 66 | 406 | 994 | 48 |
| XL | 576 | 394 | 72.5 | 73 | 180 | 575 | 515 | 820 | 66 | 406 | 1000 | 48 |
| XXL | 595 | 403 | 72.5 | 73 | 200 | 590 | 547 | 845 | 66 | 406 | 1016 | 48 |
All measurements in millimetres unless marked (°) for angles.
