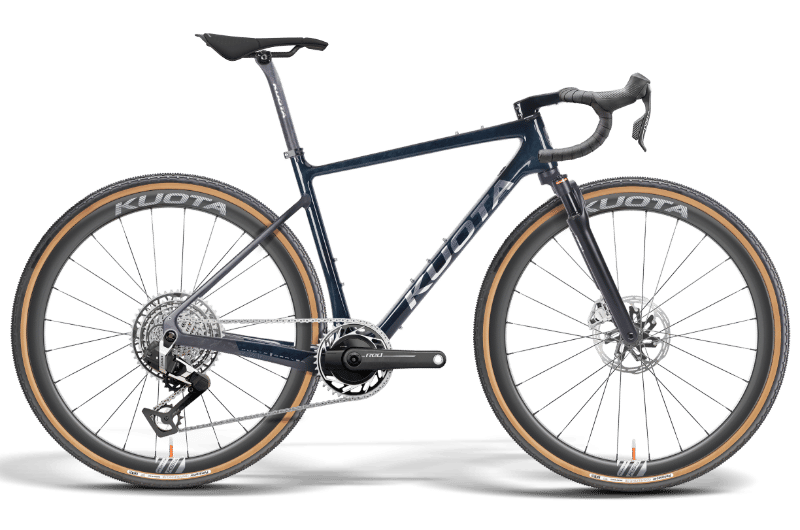

2026 Kuota Kobalt geometry
Full frame geometry for the 2026 Kuota Kobalt, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 561 | 392.5 | 74 | 69.5 | 105 | 553 | 465 | 77 | 425 | 1040 |
| 49 | 573 | 410 | 74 | 69.5 | 120 | 578 | 495 | 75 | 425 | 1062 |
| 52 | 596.5 | 425 | 74 | 69.5 | 130 | 597 | 525 | 75 | 425 | 1086 |
| 55 | 610 | 439 | 74 | 69.5 | 160 | 616 | 555 | 74 | 425 | 1106 |
| 58 | 628 | 454.5 | 74 | 69.5 | 180 | 639.5 | 585 | 74 | 425 | 1128 |
All measurements in millimetres unless marked (°) for angles.
