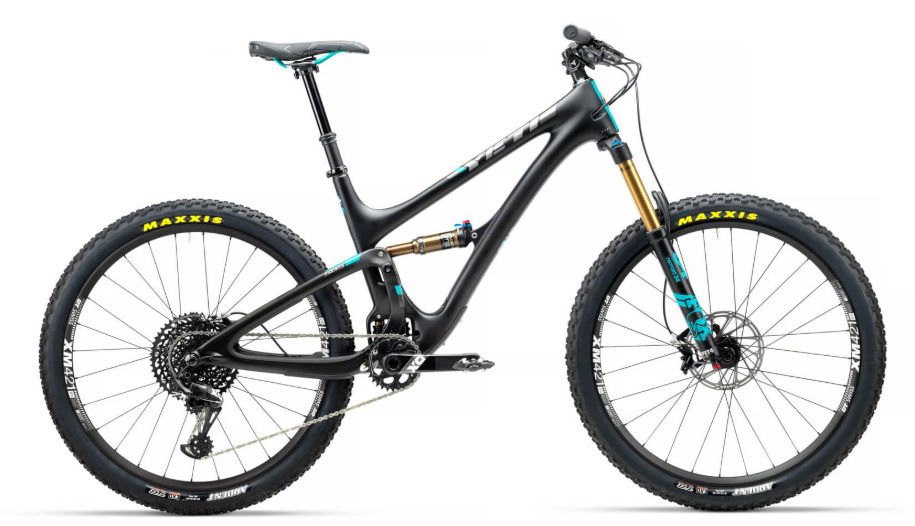

2018 Yeti SB5 geometry
Full frame geometry for the 2018 Yeti SB5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 382 | 73.7 | 66.5 | 100 | 552 | 381 | 668 | 679 | 437 | 1116 | 44 |
| S | 600 | 402 | 73.7 | 66.5 | 116 | 578 | 419 | 683 | 705 | 437 | 1142 | 44 |
| M | 610 | 424 | 73.6 | 66.5 | 127 | 603 | 445 | 724 | 731 | 437 | 1168 | 44 |
| L | 625 | 444 | 73.5 | 66.5 | 144 | 629 | 483 | 737 | 758 | 437 | 1195 | 44 |
| XL | 645 | 463 | 73.5 | 66.5 | 165 | 654 | 521 | 749 | 786 | 437 | 1222 | 44 |
All measurements in millimetres unless marked (°) for angles.
