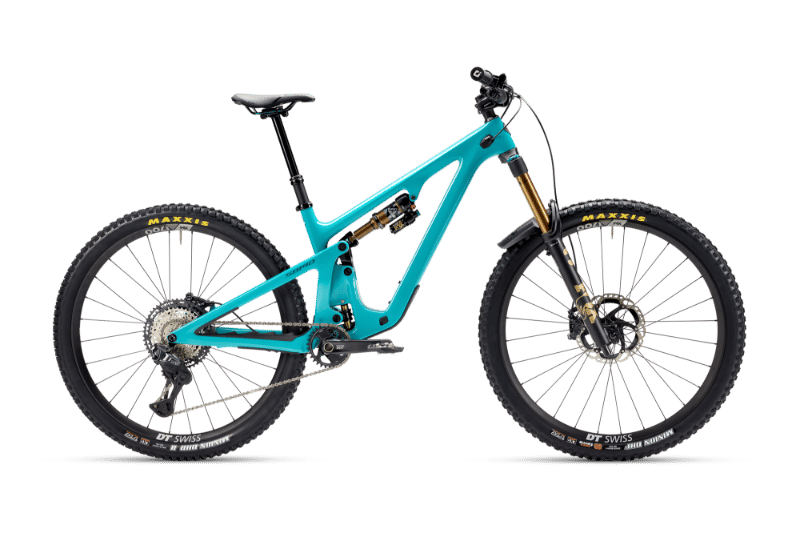

2026 Yeti SB140 geometry
Full frame geometry for the 2026 Yeti SB140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 617 | 430 | 77 | 65 | 92 | 573 | 365 | 726 | 752 | 436 | 1188 | 44 |
| MD | 620 | 460 | 77 | 65 | 95 | 603 | 400 | 733 | 783 | 438 | 1221 | 44 |
| LG | 625 | 480 | 77 | 65 | 100 | 624 | 440 | 737 | 806 | 440 | 1246 | 44 |
| XL | 635 | 505 | 77 | 65 | 112 | 652 | 470 | 739 | 835 | 442 | 1277 | 44 |
| XXL | 655 | 520 | 77 | 65 | 134 | 671 | 485 | 744 | 860 | 444 | 1304 | 44 |
All measurements in millimetres unless marked (°) for angles.
