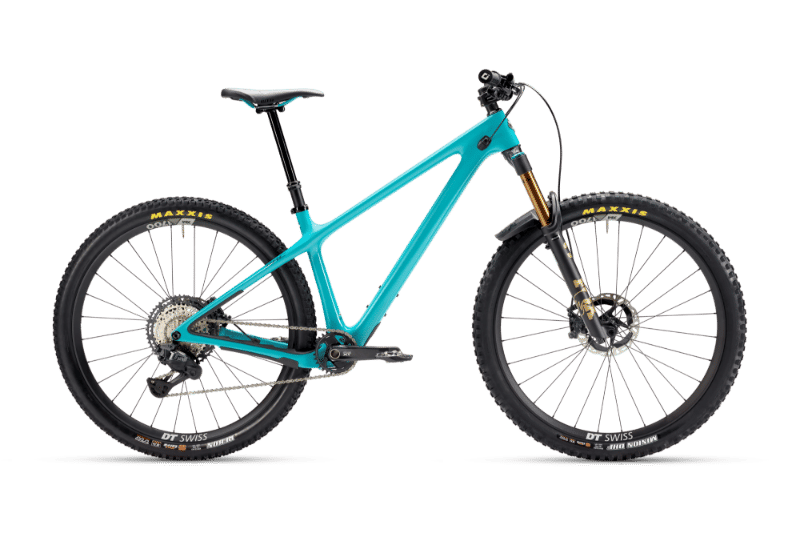

2026 Yeti ARC geometry
Full frame geometry for the 2026 Yeti ARC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 631.7 | 420 | 76 | 67 | 95 | 577.4 | 380 | 723 | 710.5 | 433 | 1143.5 | 44 |
| MD | 638.9 | 445 | 76 | 67 | 102.9 | 604.3 | 410 | 722 | 738.5 | 433 | 1171.5 | 44 |
| LG | 645.1 | 465 | 76 | 67 | 109.6 | 626 | 450 | 720 | 761.2 | 433 | 1194.2 | 44 |
| XL | 654.3 | 490 | 76 | 67 | 119.6 | 653.4 | 495 | 720 | 790.1 | 433 | 1223.1 | 44 |
All measurements in millimetres unless marked (°) for angles.
