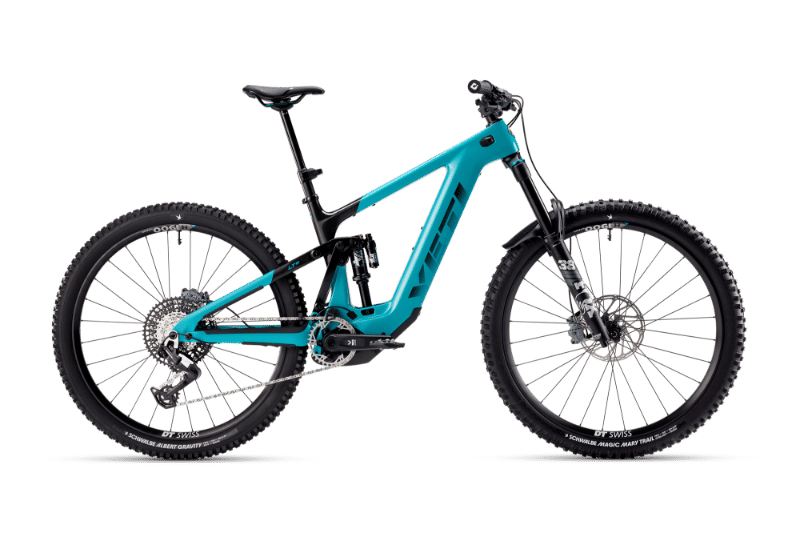

2026 Yeti LTe geometry
Full frame geometry for the 2026 Yeti LTe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 618 | 435 | 78 | 64 | 92 | 566 | 390 | 754 | 774 | 449 | 1223 | 44 |
| MD | 625 | 465 | 78 | 64 | 100 | 598 | 420 | 765 | 808 | 449 | 1257 | 44 |
| LG | 635 | 485 | 78 | 64 | 111 | 620 | 440 | 765 | 833 | 449 | 1282 | 44 |
| XL | 645 | 510 | 78 | 64 | 122 | 647 | 460 | 765 | 863 | 449 | 1312 | 44 |
All measurements in millimetres unless marked (°) for angles.
