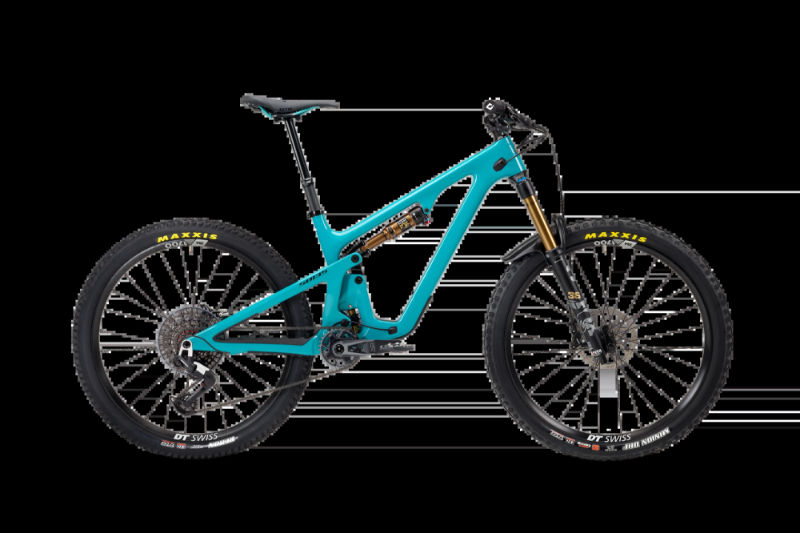

2026 Yeti SB135 geometry
Full frame geometry for the 2026 Yeti SB135, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 399 | 77 | 65.5 | 91 | 533 | 345 | 676 | 699 | 429 | 1140 | 38 |
| SM | 592 | 429 | 77 | 65.4 | 102 | 566 | 366 | 678 | 734 | 432 | 1163 | 38 |
| MD | 597 | 460 | 77 | 65.4 | 107 | 597 | 399 | 714 | 765 | 432 | 1199 | 38 |
| LG | 607 | 480 | 77 | 65.4 | 117 | 620 | 439 | 716 | 790 | 434 | 1224 | 38 |
| XL | 617 | 505 | 76.9 | 65.4 | 130 | 648 | 470 | 721 | 820 | 437 | 1257 | 38 |
All measurements in millimetres unless marked (°) for angles.
