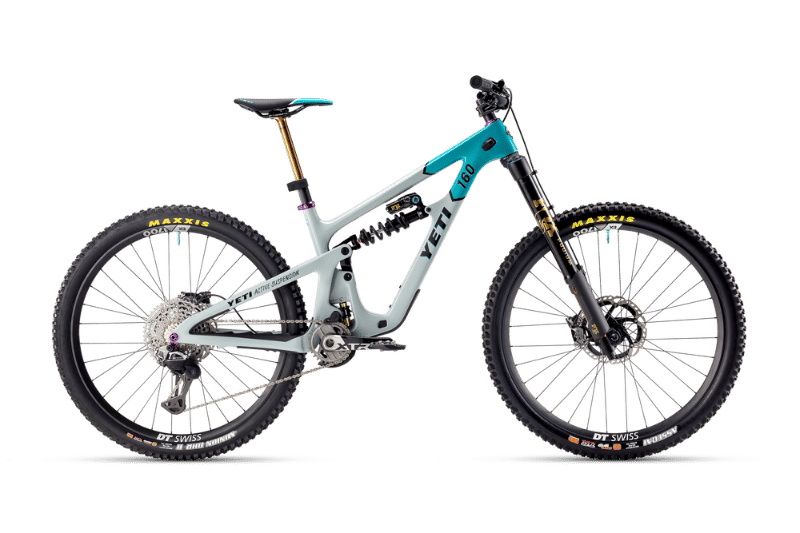

2025 Yeti SB160 geometry
Full frame geometry for the 2025 Yeti SB160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 615 | 435 | 77.5 | 64 | 95 | 571 | 365 | 15 | 437 | 1211 |
| MD | 620 | 465 | 77.5 | 64 | 101 | 602 | 400 | 15 | 439 | 1246 |
| LG | 625 | 485 | 77.5 | 64 | 107 | 624 | 440 | 15 | 441 | 1270 |
| XL | 635 | 510 | 77.5 | 64 | 118 | 651 | 470 | 15 | 443 | 1302 |
| XXL | 655 | 525 | 77.5 | 64 | 140 | 670 | 485 | 15 | 445 | 1329 |
All measurements in millimetres unless marked (°) for angles.
